SELECT A DIAGRAM
New Model Search:

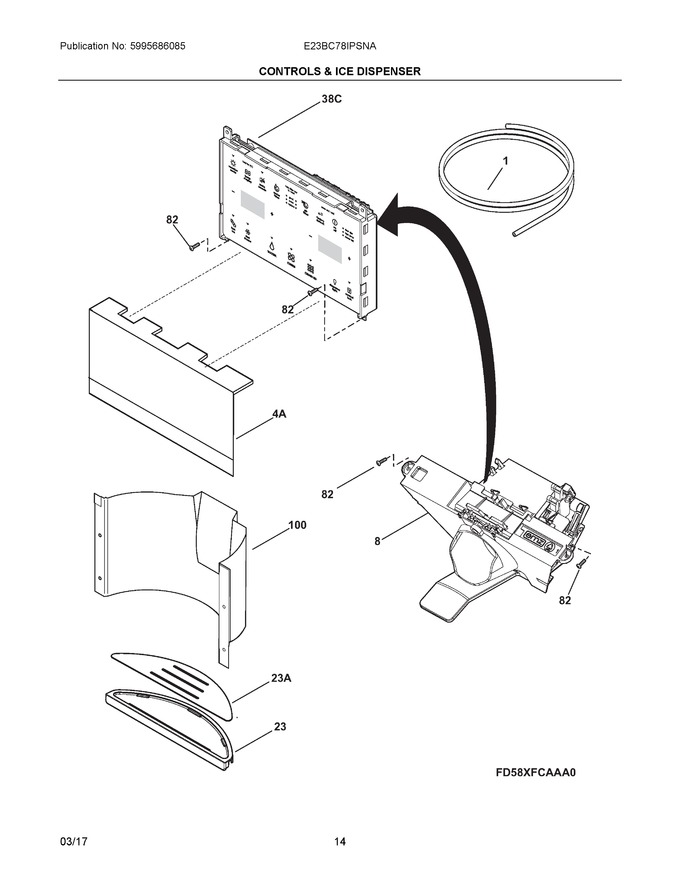

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water, 5/16-37", Yellow, Valve To, Back Connector |
|
$ 20.56 | |||||
| 8 | 242100024 | Module-dispenser, Silver |
|
$ 274.54 | |||||
| 23 | 241912301 | Drip Tray, Ss Brushed |
|
$ 222.20 | |||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 100 | 241912201 | Liner-sump, Ss Brush |
|
$ 258.70 | |||||
| 23A | 241987001 | Drip Tray, Stainless |
|
$ 59.91 | |||||
| 38C | 242041123 | Board-control, Assembly, Black |
|
$ 682.65 | |||||
| 4A | 241912101 | Trim, Dispenser |
|
$ 232.47 | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| NI | 5303918484 | Chute-ice (Replaces: 242105401) |
|
$ 30.47 | |||||
| NI | 242040801 | Harness-wiring, Dispenser |
|
$ 79.95 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 241503901 | Connector-water, Straight, 5/16 To 1/4 |
|
$ 51.22 | |||||
| NIA | 241920106 | Tube-water, Ice Maker Fill, 5/16-54", Green, Back Connector, To Ff Ice Maker (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NIB | 241964707 | Tube-water, 1/4-36", Light Green, Valve To, Back Connector |
|
Immediately | $ 18.43 | ||||
| NIC | 241965907 | Tube-water, 5/16 - 69.5", Blue |
|
$ 21.23 | |||||
| NID | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIE | 242220112 | Tube-water, .315 - 51", Brown/tan |
|
$ 19.85 | |||||
| NIF | 242220113 | Tube-water, .315 - 51", Natural |
|
$ 18.44 |
