SELECT A DIAGRAM

01 - Cover Sheet

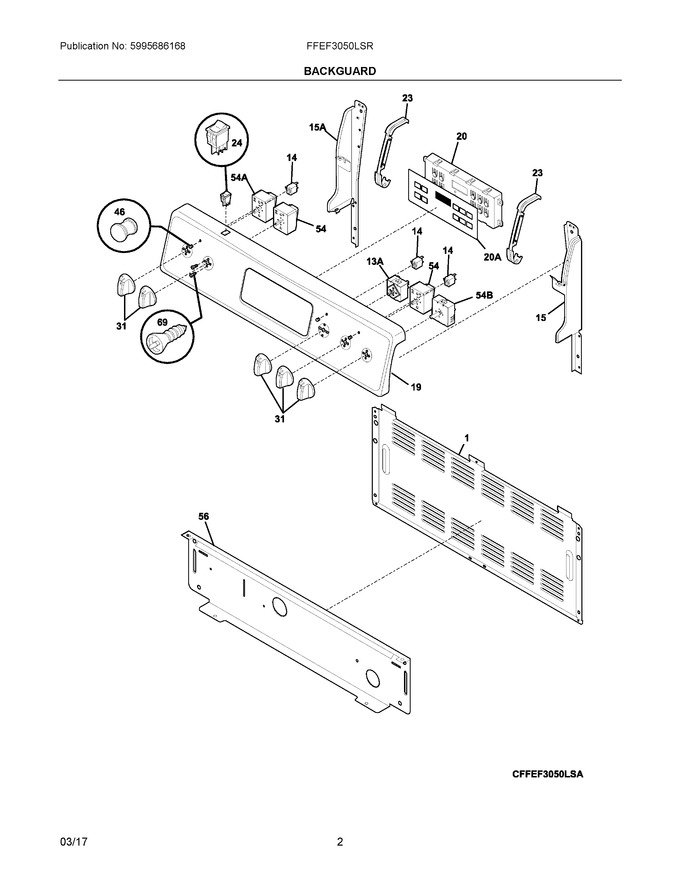

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	316411405		Support, Backguard, Black, Rh				$ 83.95
19	316456531		Panel, Backguard, Black/stainless, W/overlay		Appelez-nous	-
20	5304509493		Clock, Es300			Immediately	$ 212.37
23	316441600		Bracket-clock Mtg, Black				$ 20.48
24	5304527841		Switch, Rocker, Black, Oven Light   (Replaces: 316448700)			Immediately	$ 11.38
31	316543801		Knob, Control, Black			Immediately	$ 55.38
46	316437900		Lens, Indicator Light				$ 11.45
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	316234045		Shield, Backguard, Black, Inner   (Replaces: 316234013)				$ 66.74
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
13A	5304508926		Switch, Infinite, Warmer			Immediately	$ 84.18
15A	316411404		Support, Backguard, Black, Lh				$ 83.95
20A	316419141		Overlay, Clock, Black, Es300			Immediately	$ 56.87
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 51.68
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 89.00
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
