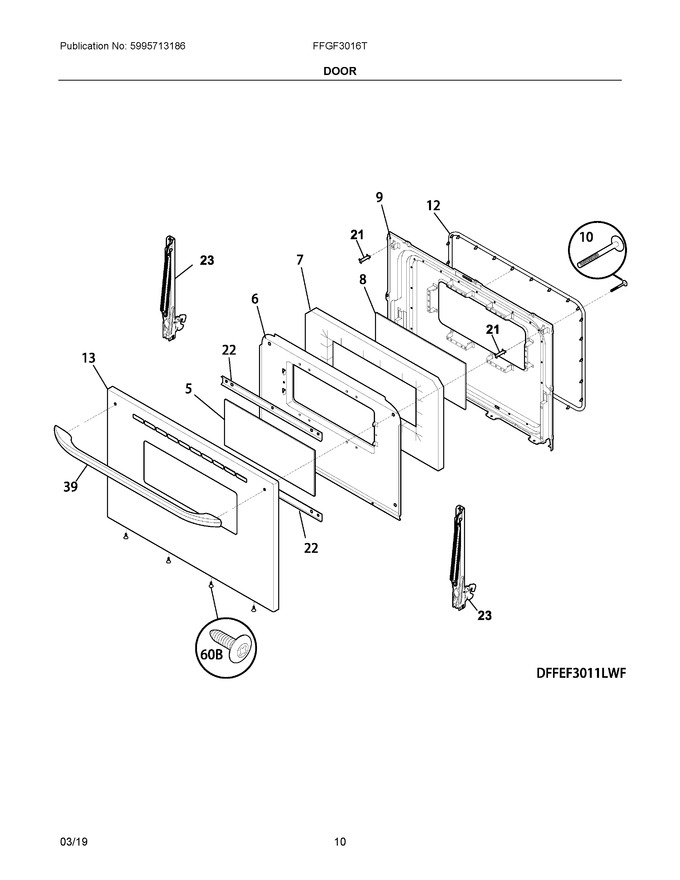

06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 316222711 | Shield, Wool, Black, Oven Door |
|
$ 47.90 | |||||
| 8 | 5304503233 | Glass, Oven Door, Inner |
|
$ 36.20 | |||||
| 9 | 316230635 | Liner, Oven Door |
|
$ 135.37 | |||||
| 12 | 316239700 | Seal, Oven Door |
|
Immediately | $ 152.43 | ||||
| 13 | 316452818 | Door Assembly, Glass/overlay, Black/slvr Mist, W/foil & Tape |
|
- | |||||
| 23 | 316575944 | Hinge, Oven Door, Yellow |
|
- | |||||
| 39 | 5304522046 | Handle, Door, Black (Replaces: 5304507384) |
|
Immediately | $ 127.96 | ||||
| NI | 316483102 | Label, Anti-tip (Replaces: 316483100) |
|
$ 3.56 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 |
