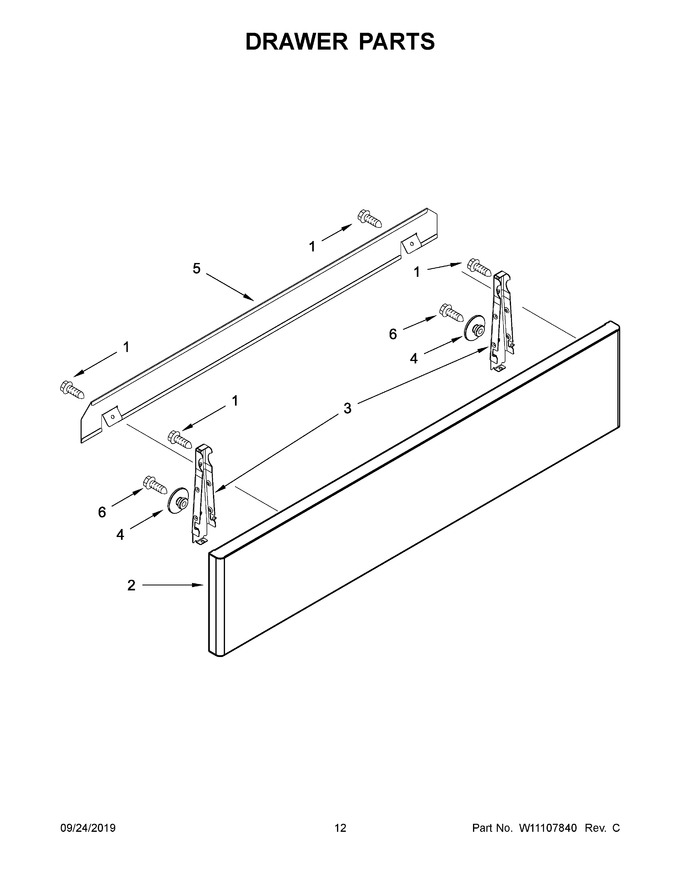

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 2 | W10602485 | Panel, Drawer Front (black) |
|
$ 151.45 | |||||
| 3 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 33.66 | |||||
| 4 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) |
|
$ 7.07 | |||||
| 5 | W10798390 | Baffle, Drawer Panel |
|
$ 205.10 | |||||
| 6 | W11739957 | Screw (Replaces: W10673879) |
|
- | |||||
| 2A | W10602484 | Panel, Drawer Front (stainless) |
|
$ 210.67 |
