SELECT A DIAGRAM

01 - Cover Sheet

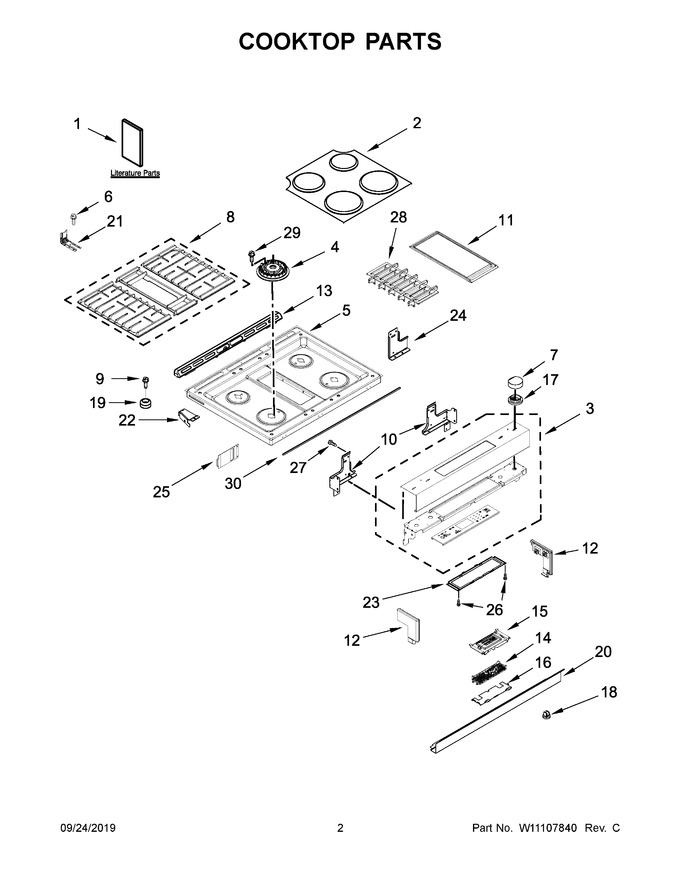

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Blower Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11259377		Instructions, Installation		Appelez-nous	-
2	WPW10300347		Kit, Burner Cap (black)   (Replaces: W10300347)			Immediately	$ 190.51
3	W11038823		Console (black)   (Replaces: W10901069)				$ 665.54
4	W11238353		Spreader, Flame (left Front & Right Front)   (Replaces: W10556378)				$ 108.32
5	W10819203		Cooktop (black)   (Replaces: W10482049)		Appelez-nous	-
6	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
7	W10505765		Knob (black)		Appelez-nous	-
8	W11211507		Kit, Grate (black)   (Replaces: W10752103)				$ 302.21
9	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
10	W10289170		Support, Cooktop (left)				$ 25.76
11	W10432544		Griddle			Immediately	$ 51.00
12	W10557750		Endcap (black (left))				$ 122.55
13	W11240519		Trim, Vent (black)   (Replaces: W10636528)				$ 134.73
14	W11295990		Control, Mrc2   (Replaces: W11254182)			Immediately	$ 440.99
15	W11108634		Display, Assembly   (Replaces: W10759326)				$ 505.38
16	W10558372		Bracket, Control				$ 21.51
17	W10490680		Bezel (black)				$ 115.36
18	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 11.28
19	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 18.83
20	W10743280		Console, Lower Panel (black)		Appelez-nous	-
21	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 20.73
22	W10162253		Brace, Corner (left)				$ 63.54
23	W10557780		Bracket , Control				$ 31.44
24	W10598048		Bracket, Console (center)				$ 22.05
25	W10752321		Shield, Keypad		Appelez-nous	-
26	W11233072		Screw, Handle   (Replaces: 7101P428-60)			Immediately	$ 12.62
27	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
28	W10752102		Grill, Air (black)				$ 196.82
29	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 12.63
30	W10802441		Gasket, Console/cooktop   (Replaces: W10612719)			Immediately	$ 20.46
10A	W10289169		Support, Cooktop (right)				$ 25.76
12A	W10557751		Endcap (stainless (left))				$ 144.73
12B	W10557753		Endcap (black (right))		Appelez-nous	-
12C	W10557754		Endcap (stainless (right))				$ 144.73
13A	W11170796		Trim, Vent (stainless)   (Replaces: W10636529)			Immediately	$ 121.73
17A	W11028784		Bezel (stainless)   (Replaces: W10490679)			Immediately	$ 53.14
1A	W11123986		Guide, Use And Care		Appelez-nous	-
1B	W10844271		Sheet, Tech		Appelez-nous	-
1C	W10902654		Diagram, Wiring		Appelez-nous	-
1D	W11120467		Guide, Quick Start (burner Caps)		Appelez-nous	-
1E	W10400066		Guide, Quick Start (english)		Appelez-nous	-
1F	W10400067		Guide, Quick Start (french)		Appelez-nous	-
1G	W11643128		Template, Downdraft   (Replaces: W10817089)				$ 12.35
20A	W10743281		Console, Lower Panel (stainless)		Appelez-nous	-
22A	W10162252		Brace, Corner (right)				$ 67.37
3A	W11039015		Console (stainless)   (Replaces: W10901068)				$ 764.42
4A	W10556377		Spreader, Flame (right Rear)				$ 75.96
4B	W10556381		Spreadder, Flame (left Rear)				$ 78.42
5A	W10803780		Cooktop (stainless)   (Replaces: W10482062)		Appelez-nous	-
7A	WPW10505764		Knob (stainless)   (Replaces: W10505764)				$ 109.48
NI	W11175842		Suppressor   (Replaces: W10653092)			Immediately	$ 94.54
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 48.02
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 192.83
NI	W10911851		Harness, Main			Immediately	$ 214.16
NI	W11198274		Harness, Down Draft Fan Jumper				$ 100.91
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60

    View Diagram in Separate Window       Print Part List
