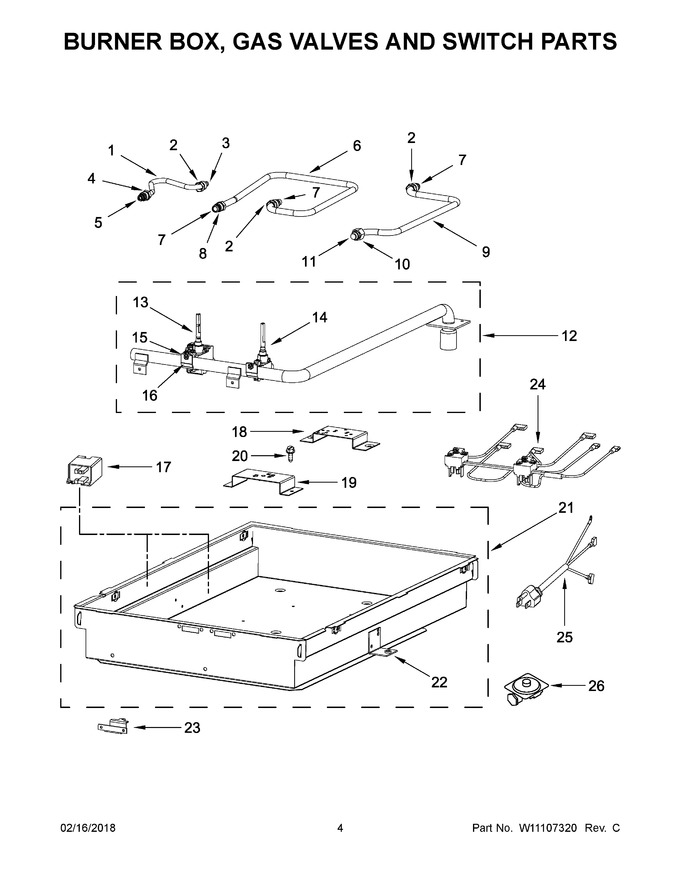

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11043470		Tubing, Burner (front)		Appelez-nous	-
2	W10575398		Nut, Injector		Appelez-nous	-
3	W10845603		Ferrule, Dual Injector		Appelez-nous	-
4	W10692377		Nut, Compression 1/4" Tubing		Appelez-nous	-
5	W10692371		Sleeve, Compression 1/4" Tubing		Appelez-nous	-
6	W11043471		Tubing, Burner (front)		Appelez-nous	-
7	W10575399		Ferrule, Injector		Appelez-nous	-
8	W10692372		Nut, Compression		Appelez-nous	-
9	W11043513		Tubing, Burner (rear)		Appelez-nous	-
10	8190918		Nut, Compression		Appelez-nous	-
11	8190917		Sleeve, Compresson		Appelez-nous	-
12	W11043030		Assembly, Manifold		Appelez-nous	-
13	W11043379		Valve, Gas (dual)				$ 259.94
14	W11043516		Valve, Gas (single)				$ 243.30
15	W10617475		Bracket, Valve		Appelez-nous	-
16	W10617476		Screw, Valves		Appelez-nous	-
17	W11601369		Spark Module   (Replaces: 8190929)			Immediately	$ 60.62
18	W10618476		Bracket, Orifice Holder (single Burner)   (Replaces: W11108772)		Appelez-nous	-
19	W10691683		Bracket, Orifice Holder (dual Burner)   (Replaces: W11108773)		Appelez-nous	-
20	W10626012		Screw		Appelez-nous	-
21	W11043428		Assembly, Burner Box		Appelez-nous	-
22	8190978		Bracket, Mounting				$ 81.04
23	W11042981		Bracket, Control Panel		Appelez-nous	-
24	W11043515		Harness, Switch And Light				$ 329.78
25	W10392007		Cord, Power   (Replaces: W10618502)				$ 96.25
26	WPW10569189		Regulator, Gas   (Replaces: W10569189)			Immediately	$ 226.67
NI	W11173757		Miscellaneous Parts, Kit, Module Mounting Bridge   (Replaces: W11031680)				$ 380.07

    View Diagram in Separate Window       Print Part List
