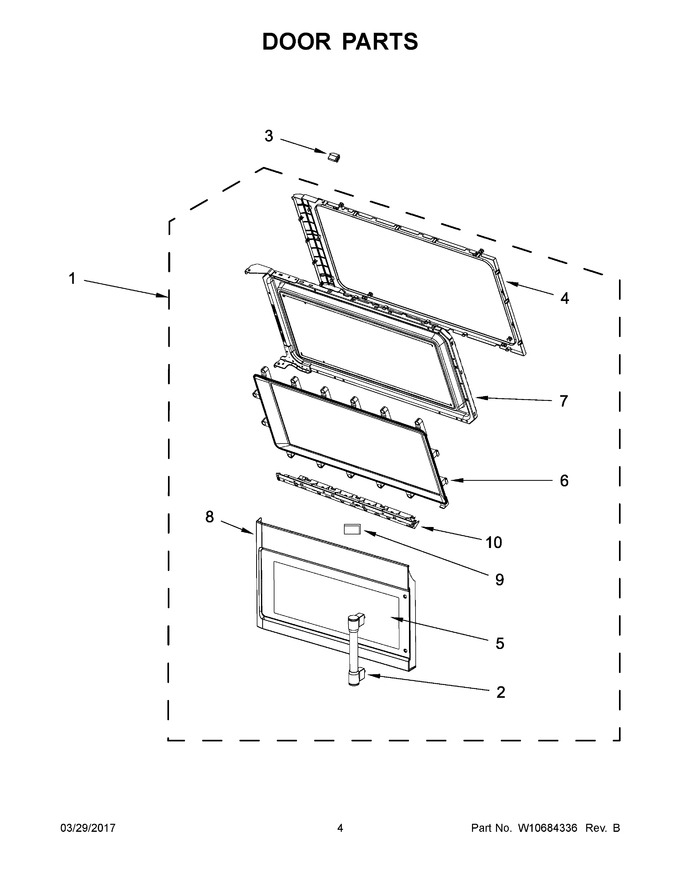

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10672721 | Door, Complete (stainless) |
|
$ 298.20 | |||||
| 2 | W10646732 | Handle (stainless) |
|
- | |||||
| 3 | W10643974 | Stopper, Door |
|
$ 19.41 | |||||
| 4 | W10648086 | Frame, Inner |
|
$ 86.25 | |||||
| 5 | WPW10578515 | Glass, Outer Door (stainless) (Replaces: W10578515) |
|
$ 124.22 | |||||
| 6 | W10514243 | Plate, Steam Protection |
|
$ 67.77 | |||||
| 7 | W10647793 | Foil, Door |
|
$ 172.82 | |||||
| 8 | W10593886 | Frame, Door (stainless) |
|
$ 317.94 | |||||
| 9 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 36.31 | ||||
| 10 | W10560421 | Trim, Door (black) |
|
- | |||||
| 10A | W10589124 | Trim, Door (white) |
|
$ 64.01 | |||||
| 1A | W10672725 | Door, Complete (black Ice) |
|
- | |||||
| 1B | W10672724 | Door, Complete (white Ice) |
|
$ 353.59 | |||||
| 5A | WPW10544436 | Glass, Outer Door (black) (Replaces: W10544436) |
|
$ 109.75 | |||||
| 5B | WPW10578513 | Glass, Outer Door (white) (Replaces: W10578513) |
|
$ 127.77 | |||||
| 8A | W11207468 | Frame, Door (black) (Replaces: W10544426) |
|
$ 104.96 | |||||
| 8B | W11207467 | Frame, Door (white) (Replaces: W10589106) |
|
$ 198.44 |
