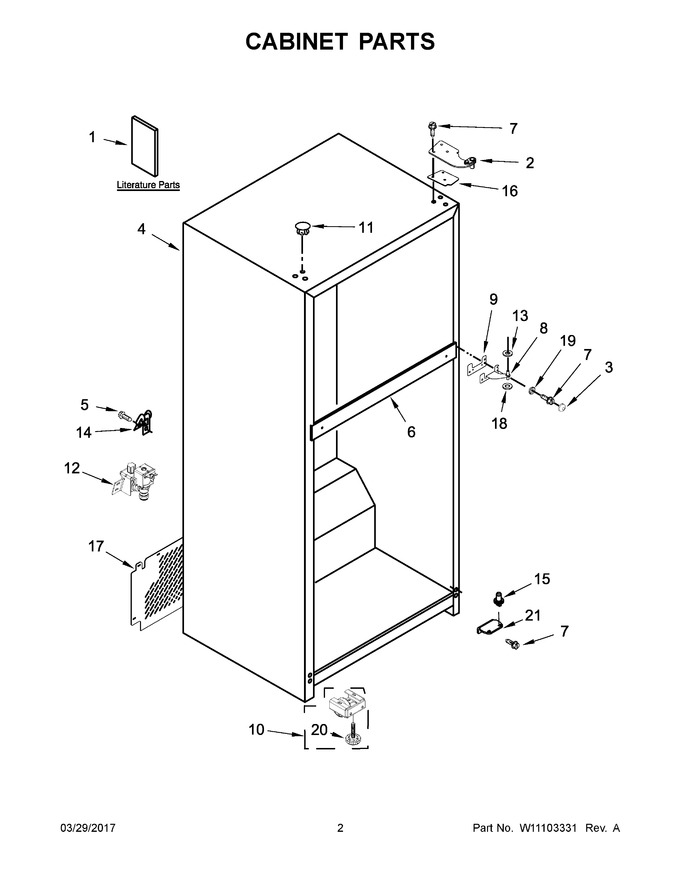

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10843219 | Tech Sheet |
|
- | |||||
| 2 | WPW10300065 | Assembly, Top Right Hinge (Replaces: W10300065) |
|
$ 11.95 | |||||
| 3 | W10849198 | Dome Cap (grey) (Replaces: W10679139) |
|
$ 16.47 | |||||
| 4 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 5 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 6 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WP2166037 | Assembly, Hinge (center) (Replaces: 2166086) |
|
$ 70.34 | |||||
| 9 | 2166043 | Shim, Hinge (center) (white) |
|
$ 59.80 | |||||
| 10 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 101.23 | ||||
| 11 | WPW10520307 | Hole Plug (grey) (Replaces: W10520307) |
|
Immediately | $ 6.47 | ||||
| 12 | WPW10279909 | Valve, Inlet (Replaces: W10498995) |
|
$ 162.77 | |||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 14 | 549193 | Clamp, Power Cord |
|
$ 12.05 | |||||
| 15 | WP2325483 | Pin, Hinge (bottom) (Replaces: 2325483) |
|
Immediately | $ 6.47 | ||||
| 16 | WPW10300065 | Hinge (top) (Replaces: W10300069) |
|
$ 11.95 | |||||
| 17 | W11307292 | Cover, Unit (Replaces: W10626437) |
|
$ 42.71 | |||||
| 18 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 19 | W10847959 | Dome Cap, Washer (Replaces: W10674773) |
|
$ 9.66 | |||||
| 20 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 10.58 | |||||
| 21 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 68.57 | ||||
| 1A | W10843051 | Use & Care Guide |
|
- | |||||
| 1B | W11033109 | Energy Guide |
|
- |
