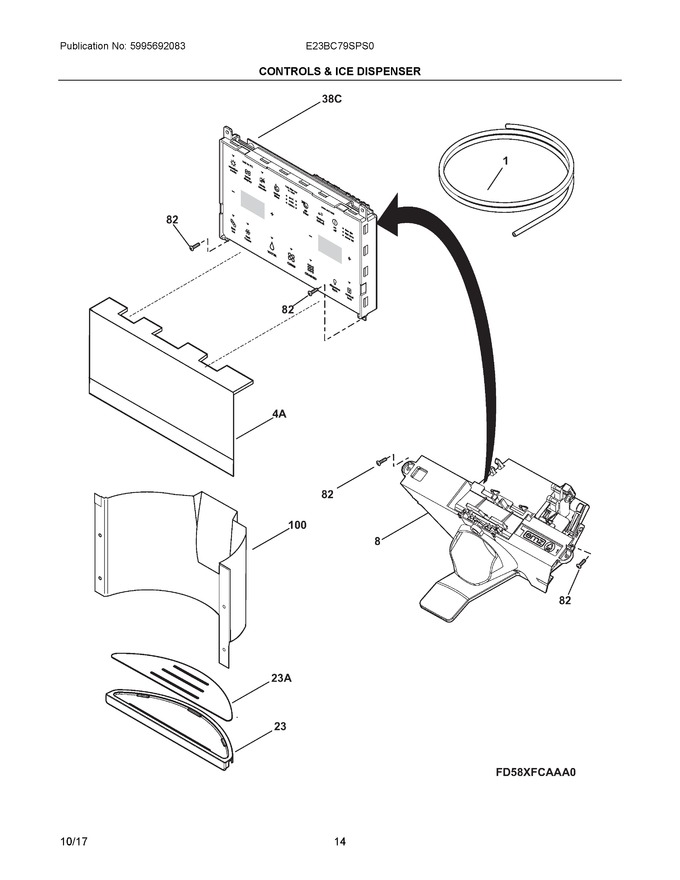

07 - Controls & Ice Dispenser


08 - Ice Container


09 - Ice Maker


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242220119		Tube-water, 97.5", Natural, Filter Base To, Secondary Valve			Immediately	$ 30.47
1	218976435		Tube-water, 5/16-37", Yellow, Valve To, Back Connector				$ 20.56
8	242100024		Module-dispenser, Silver				$ 274.54
23	241912301		Drip Tray, Ss Brushed				$ 222.20
51	242169404		Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension		Appelez-nous	-
64	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 19.13
82	241953902		Screw, Quad Hilo, #8-18 X 0.25   (Replaces: 241953907)			Immediately	$ 17.11
82	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
100	241912201		Liner-sump, Ss Brush				$ 258.70
23A	241987001		Drip Tray, Stainless				$ 59.91
38C	5304510412		Control Assembly, User Interface, W/housing				$ 302.63
4A	241912101		Trim, Dispenser				$ 232.47
NI	242040801		Harness-wiring, Dispenser				$ 79.95
NI	5303918484		Chute-ice   (Replaces: 242105401)				$ 30.47
NI	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
NI	240451503		Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe				$ 3.79
NI	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NI	241503901		Connector-water, Straight, 5/16 To 1/4				$ 51.22
NI	241510904		Harness-dispenser, Grounding				$ 60.96
NIA	241920106		Tube-water, Ice Maker Fill, 5/16-54", Green, Back Connector, To Ff Ice Maker   (Replaces: 241920104)			Immediately	$ 60.67
NIB	241964707		Tube-water, 1/4-36", Light Green, Valve To, Back Connector			Immediately	$ 18.43
NIC	241965907		Tube-water, 5/16 - 69.5", Blue				$ 21.23
NID	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
