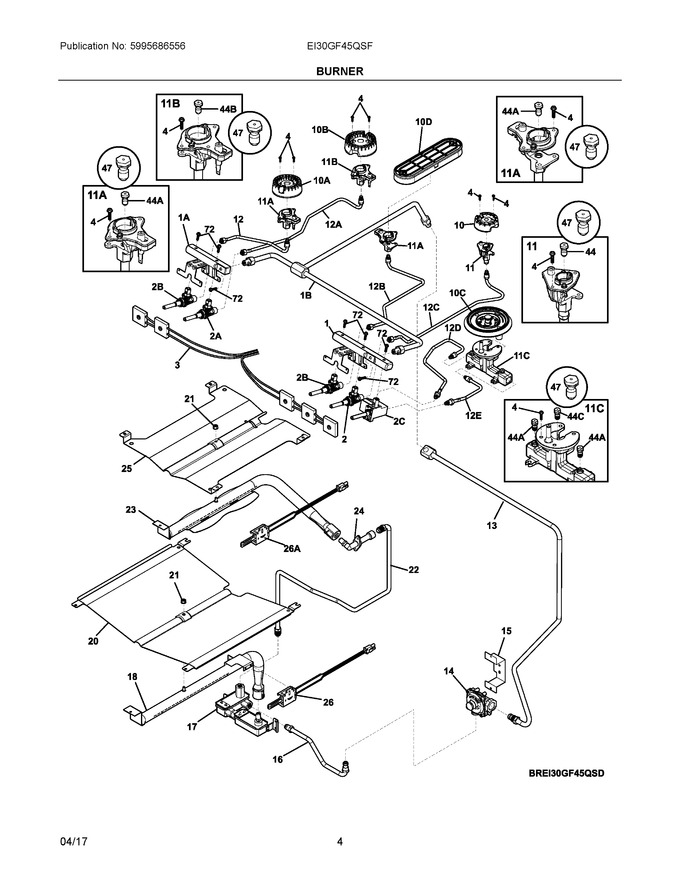

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	808911101		Manifold, Pipe, Rh		Appelez-nous	-
2	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
3	5304507296		Harness Assembly, Ignitor, W/switches				$ 119.79
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
12	809126001		Tube, Burner, Lh Front		Appelez-nous	-
13	809126101		Tube, Supply, Manifold		Appelez-nous	-
14	316091711		Regulator, Pressure   (Replaces: 316416705)			Immediately	$ 90.03
15	318262810		Bracket, Regulator		Appelez-nous	-
16	318289500		Tube, Regulator Valve				$ 75.84
17	316031501		Valve, Safety			Immediately	$ 296.26
18	5304502520		Burner, Bake				$ 173.66
20	139005100		Baffle, Bake Burner				$ 95.68
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	139009500		Tube, Broil Supply				$ 71.59
23	139007101		Burner, Broil   (Replaces: 139007100)				$ 116.24
24	316409703		Elbow, Mixer				$ 138.70
25	316401301		Baffle, Broil Burner				$ 173.57
26	139013700		Ignitor, Burner			Immediately	$ 171.52
44	316527504		Orifice, Burner, 5k				$ 22.68
47	GRLP4		Lp Conversion Kit   (Replaces: 316542417)			Immediately	$ 56.70
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
10A	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10C	5304501023		Burner Assembly, G5				$ 165.99
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 177.19
11A	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
11B	316543204		Ignitor/orifice Assy., Top Burner, 14k				$ 12.33
11C	316440100		Ignitor/orifice Assy., Top Burner, Twin, 17k, W/holder				$ 167.98
12A	809125701		Tube, Burner, Lh Rear		Appelez-nous	-
12B	809125801		Tube, Burner, Center		Appelez-nous	-
12C	809125601		Tube, Burner, Rh Rear		Appelez-nous	-
12D	809126301		Tube, Twin Burner, Rh Front, Inside				$ 30.47
12E	809125901		Tube, Twin Burner, Rh Front, Outside				$ 27.64
1A	808911102		Manifold, Pipe, Lh		Appelez-nous	-
1B	809125501		Tubing, Interconnect, Manifold		Appelez-nous	-
26A	139013701		Ignitor, Broil Burner				$ 170.81
2A	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 53.85
2B	5304506551		Valve, Top Burner, Pink Stem, 2500btu				$ 61.43
2C	5303935400		Valve, Top Burner, Dual				$ 163.07
44A	316527500		Orifice, Burner, 9.5k				$ 21.40
44B	316527511		Orifice, Burner, 14k				$ 19.85
44C	316527514		Orifice, Burner, Simmer				$ 20.56
NI	5304497167		Harness, Wiring, Ignitor Module, To Ignitors				$ 78.67
NI	808041201		Harness, Wiring, Oven Ignitors				$ 51.57
NI	316566901		Sleeve, Insulator				$ 12.89
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
