View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard

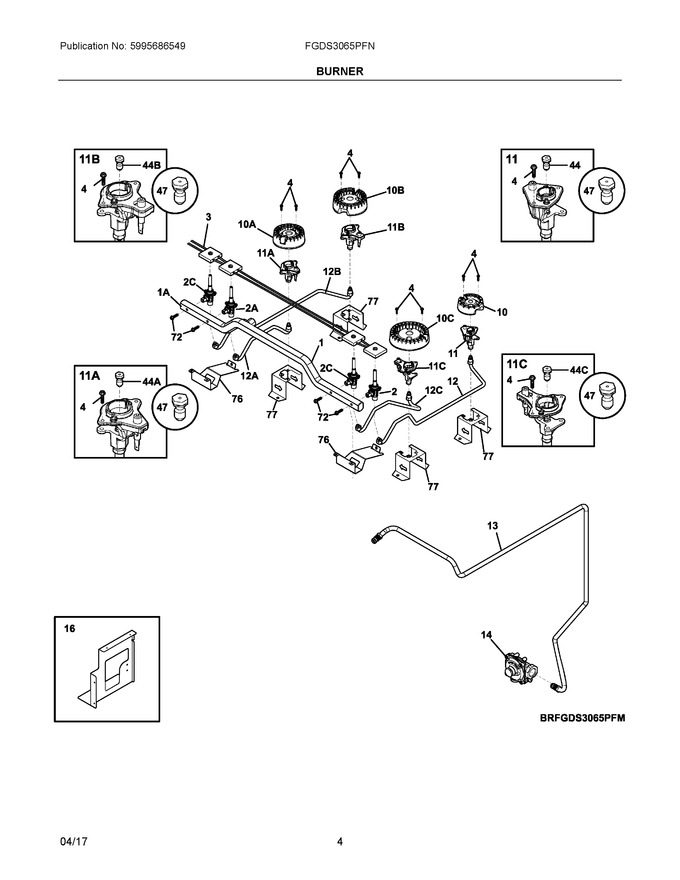

03 - Burner
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304506502 | Manifold Pipe, Long |
|
$ 163.02 | |||||
| 2 | 5304506549 | Valve, Top Burner, Blue Stem, 1125btu |
|
Immediately | $ 62.34 | ||||
| 3 | 5304509745 | Switch Assembly, Ignitor, 4 Valve, W/harness |
|
Immediately | $ 102.88 | ||||
| 4 | 316240600 | Screw, Hex Wash, 6-32 X .485 (Replaces: 5304472956) |
|
Immediately | $ 12.13 | ||||
| 10 | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 56.70 | ||||
| 11 | 316540800 | Ignitor/orifice Assy., Top Burner, 5k, W/holder |
|
$ 11.20 | |||||
| 12 | 318916800 | Tube, Burner Supply, Rh Rear |
|
$ 110.09 | |||||
| 13 | 5304506712 | Tube, Reg To Manf |
|
$ 74.42 | |||||
| 14 | 318122721 | Regulator, Pressure |
|
Immediately | $ 126.65 | ||||
| 16 | 318590003 | Panel, Regulator Mtg. |
|
$ 51.50 | |||||
| 44 | 316527504 | Orifice, Burner, 5k |
|
$ 22.68 | |||||
| 47 | GRLP4 | Conversion Kit, Lp (Replaces: 318565405) |
|
Immediately | $ 56.70 | ||||
| 72 | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 76 | 318906703 | Bracket, Manifold, (2) |
|
$ 46.57 | |||||
| 77 | 318920300 | Bracket, Burner Mtg, (4) |
|
- | |||||
| 10A | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 52.45 | ||||
| 10B | 316438600 | Burner, Sealed, 14k |
|
Immediately | $ 79.80 | ||||
| 10C | 316438400 | Burner, Sealed, 18.2k |
|
Immediately | $ 83.42 | ||||
| 11A | 316540700 | Ignitor/orifice Assy., Top Burner, 9.5k, W/holder |
|
$ 11.15 | |||||
| 11B | 316543206 | Ignitor/orifice Assy., Top Burner, 14k, W/holder |
|
$ 146.71 | |||||
| 11C | 316543203 | Ignitor/orifice Assy., Top Burner, 17k, W/holder |
|
$ 12.20 | |||||
| 12A | 318916500 | Tube, Burner Supply, Lh Front |
|
$ 47.78 | |||||
| 12B | 318916600 | Tube, Burner Supply, Lh Rear |
|
- | |||||
| 12C | 318916700 | Tube, Burner Supply, Rh Front |
|
$ 51.74 | |||||
| 2A | 5304507282 | Valve, Top Burner, Red Stem, 1800btu |
|
Immediately | $ 53.85 | ||||
| 2C | 5304506551 | Valve, Top Burner, Pink Stem, 2500btu |
|
$ 61.43 | |||||
| 44A | 316527500 | Orifice, Burner, 9.5k |
|
$ 21.40 | |||||
| 44B | 316527513 | Orifice, Top Burner, 14k |
|
$ 22.05 | |||||
| 44C | 316527509 | Orifice, Burner, 17k |
|
$ 19.85 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 318199776 | Wiring Harness, Ignitor |
|
$ 54.60 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 |
