01 - Cover Sheet

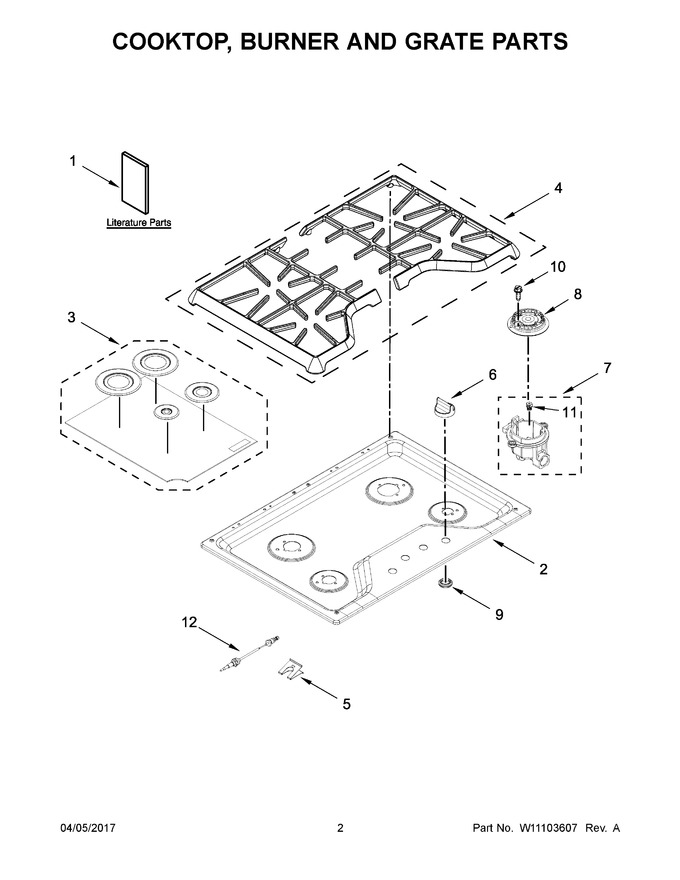

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10597144		Instructions, Installation		Appelez-nous	-
2	W10597071		Cooktop (black)		Appelez-nous	-
3	WPW10597129		Kit, Burner Cap (black)   (Replaces: W10597129)				$ 109.15
4	W11413073		Kit, Grate (black)   (Replaces: W10594445)				$ 322.12
5	8286863		Spring, Electrode				$ 65.93
6	W10895114		Knobs, Cooktop (black)				$ 68.27
7	W10594399		Holder, Orifice (5k) (left Front)				$ 33.26
8	WP8286813		Head, Burner (left Front)   (Replaces: 8286813)				$ 85.50
9	W11206740		Grommet (black)   (Replaces: W10625915)				$ 7.81
10	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 12.65
11	W10791082		Orifice (left Front)   (Replaces: W10652711)				$ 77.40
12	W11507531		Wiring, Electrode (left Front & Right Front)   (Replaces: W10541842)				$ 52.13
11A	W10791073		Orifice (left Rear)   (Replaces: W10609592)				$ 80.11
11B	W10791079		Orifice (right Front)   (Replaces: W10409144)				$ 80.11
11C	W10652710		Orifice (right Rear)				$ 23.37
12A	W11507532		Wiring, Electrode (left Rear & Right Rear)   (Replaces: W10541843)			Immediately	$ 52.19
1A	W10672375		Instructions, Undercounter Install		Appelez-nous	-
1B	W10648065		Guide, Use & Care		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1E	W10733303		Instructions, Conversion		Appelez-nous	-
7A	W10609591		Holder, Orifice (15k) (left Rear)				$ 62.03
7B	W10597159		Holder, Orifice (12k) (right Front)				$ 62.10
7C	W10594402		Holder,orifice (9.1k) (right Rear)				$ 61.77
8A	WP8286815		Head, Burner (left Front & Right Front)   (Replaces: 8286815)			Immediately	$ 66.94
8B	WP8286814		Head, Burner (right Rear)   (Replaces: 8286814)				$ 106.79
NI	W10392003		Cord, Power				$ 138.57
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	W10676661		Kit, Lp Conversion				$ 36.11
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11561439		Harness (switch), Main   (Replaces: W10868534)				$ 52.41
