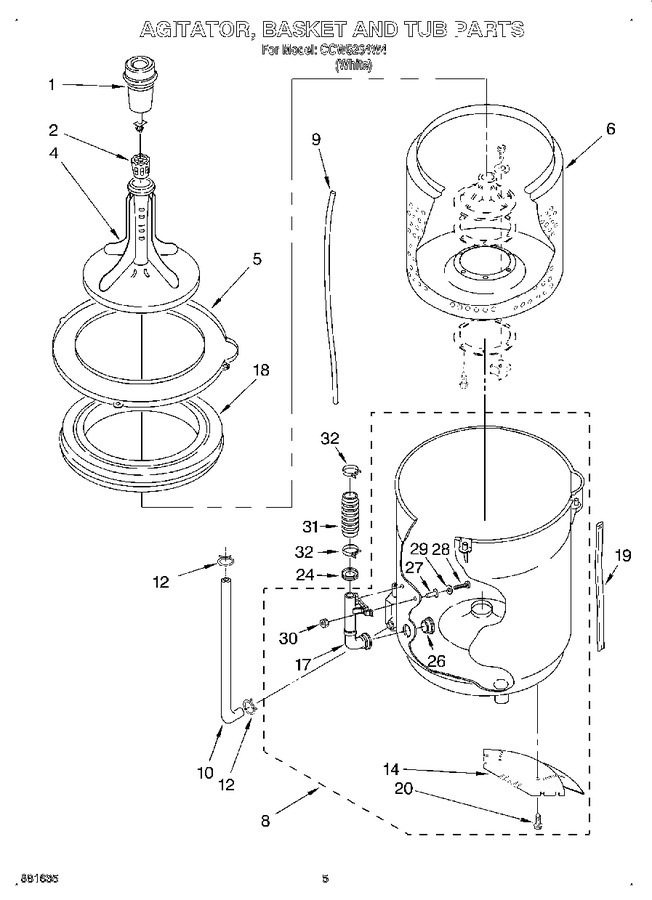

03 - Agitator, Basket And Tub


04 - Transmission, Motor And Pump


05 - Suspension


06 - Wiring Harness


07 - Water System


08 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3428670		Tube & Dispenser Assembly		Appelez-nous	-
2	3428391		Filter		Appelez-nous	-
4	3428392		Agitator		Appelez-nous	-
5	3429902		Tub Ring		Appelez-nous	-
6	3428186		Basket		Appelez-nous	-
8	3935537		Tub & Inlet Asy.		Appelez-nous	-
9	WP353244		Hose, Pressure Switch   (Replaces: 3430159)			Immediately	$ 53.94
10	3430339		Hose, Bleach				$ 16.39
12	WP596669		Clamp, Hose   (Replaces: 370452)			Immediately	$ 7.56
14	3428814		Shield, Tub/motor		Appelez-nous	-
17	3935347		Inlet-tube Assy.		Appelez-nous	-
18	3934565		Balance Ring		Appelez-nous	-
19	3966238		Hose, Tub Overflow				$ 6.93
20	WP3400872		Screw (2)   (Replaces: 3429682)				$ 6.95
24	3935678		Ring-protector		Appelez-nous	-
26	3935332		Seal		Appelez-nous	-
27	3935431		Well-nut (2)		Appelez-nous	-
28	3935432		Screw, Well Nut (2)		Appelez-nous	-
29	3935786		Washer, Nut (2)		Appelez-nous	-
30	3935437		Hex-nut (2)		Appelez-nous	-
31	3429900		Hose-corrugated				$ 22.54
32	3935874		Clamp-hose		Appelez-nous	-
