01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

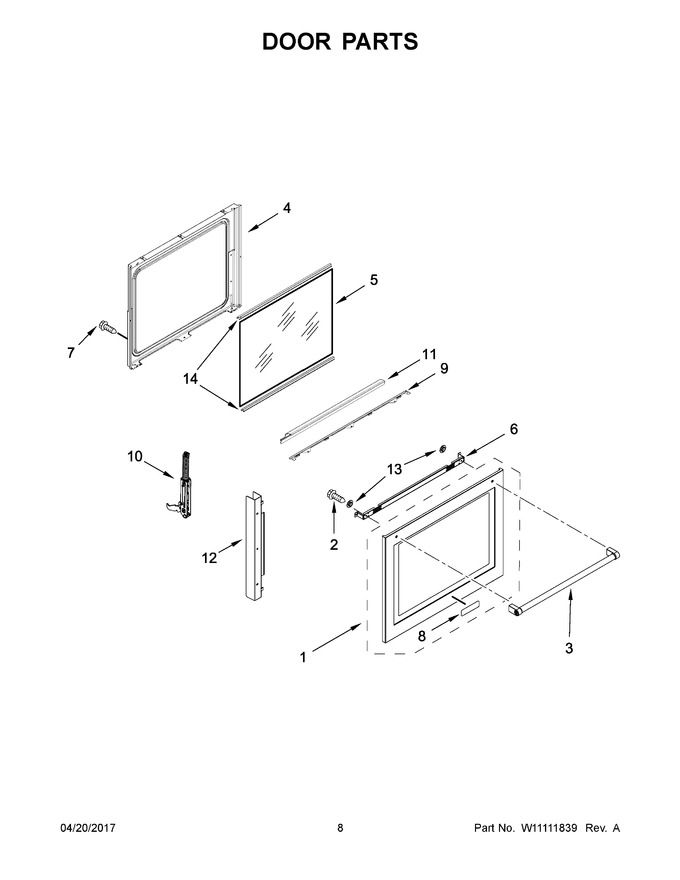

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10906445 | Assembly, Outer Door (stainless) (Replaces: W10830225) |
|
$ 403.48 | |||||
| 2 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 3 | W11104399 | Handle, Door (stainless) (Replaces: W10551000) |
|
$ 203.55 | |||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 282.60 | |||||
| 5 | W11339500 | Glass, Inner (Replaces: W10813616) |
|
$ 146.72 | |||||
| 6 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 34.22 | ||||
| 7 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 12.65 | ||||
| 8 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 65.31 | ||||
| 9 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 151.89 | ||||
| 10 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 111.53 | ||||
| 11 | W11251351 | Scoop, Door (black) (Replaces: W10613791) |
|
Immediately | $ 119.72 | ||||
| 12 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 65.30 | ||||
| 13 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 12.69 | ||||
| 14 | W11673273 | Spacer, Glass (Replaces: W10813142) |
|
Immediately | $ 26.60 |
