SELECT A DIAGRAM
01 - Cabinet, Lower
02 - Cabinet, Upper
03 - Control Compartment
04 - Control Panel
05 - Door Latch, Upper And Lower
06 - Gas Components
07 - Oven Door
08 - Trim
SELECT A DIAGRAM
New Model Search:

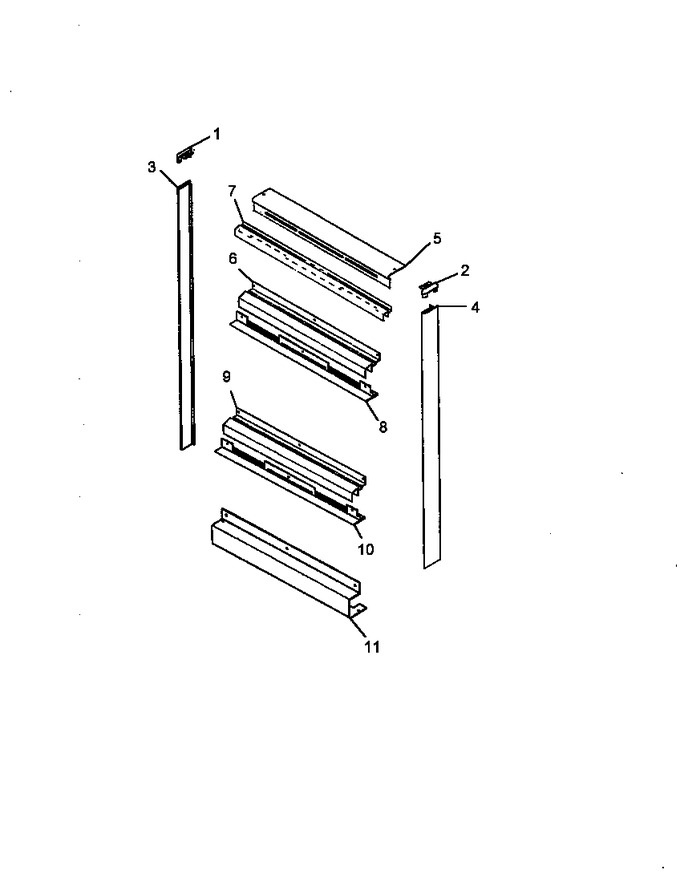

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 307888B | Trim, Corner-lt (blk) |
|
- | |||||
| 2 | 307887B | Trim, Corner-rt (blk) |
|
- | |||||
| 3 | 308980B | Trim, Side Lt (blk) |
|
- | |||||
| 4 | 308981B | Trim, Side Rt (blk) |
|
- | |||||
| 5 | 308982B | Trim, Upper Top (blk) |
|
- | |||||
| 6 | 308983B | Trim, Lower Top (blk) |
|
- | |||||
| 7 | 308159B | Trim, Control Panel-top (blk) |
|
- | |||||
| 8 | 308160B | Trim, Control Panel-bot (blk) |
|
- | |||||
| 9 | 308979B | Trim, Upper Center (blk) |
|
- | |||||
| 10 | 308155B | Trim, Center Lower (blk) |
|
- | |||||
| 11 | 314137B | Trim, Bottom (blk) |
|
- | |||||
| NI | Y0307205 | Brkt, Trim Corner |
|
- | |||||
| NI | 0302844 | Screw No.8 18 X 1/2 Black |
|
- | |||||
| NI | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 12.65 |
