01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body

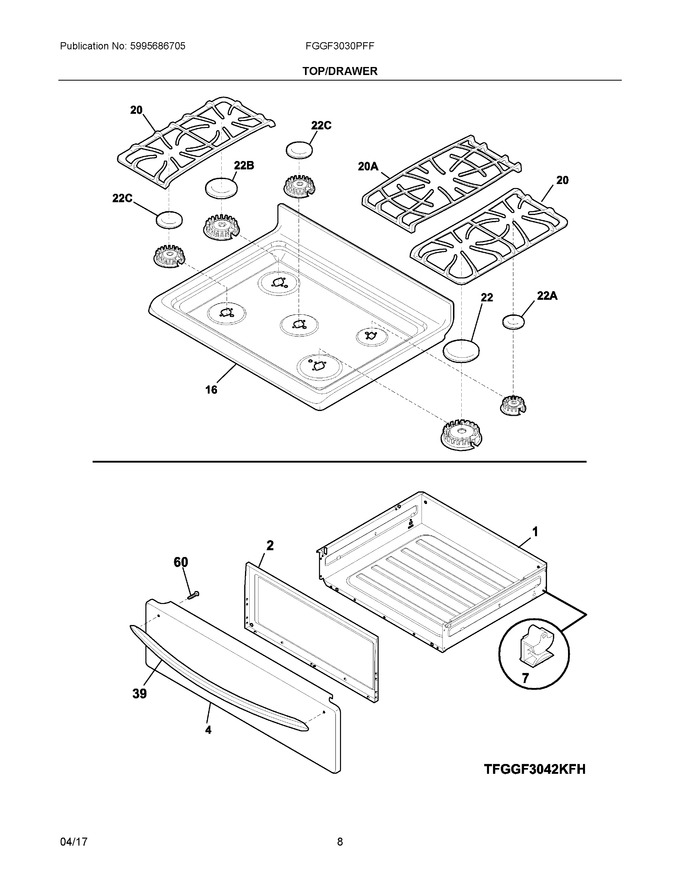

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304527988		Liner, Drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	5304494412		Panel, Drawer, Stainless, Outer   (Replaces: 316409317)				$ 98.53
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316469605		Maintop Panel, Black		Appelez-nous	-
20	316499806		Grate, Black, (2)   (Replaces: 316499502)				$ 354.16
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 168.44
60	5303288572		Screw-handle Mtg		Appelez-nous	-
20A	316499806		Grate, Center, Black   (Replaces: 316551802)				$ 354.16
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	316261904		Cap, 12k Burner, Black				$ 46.36
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
