SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

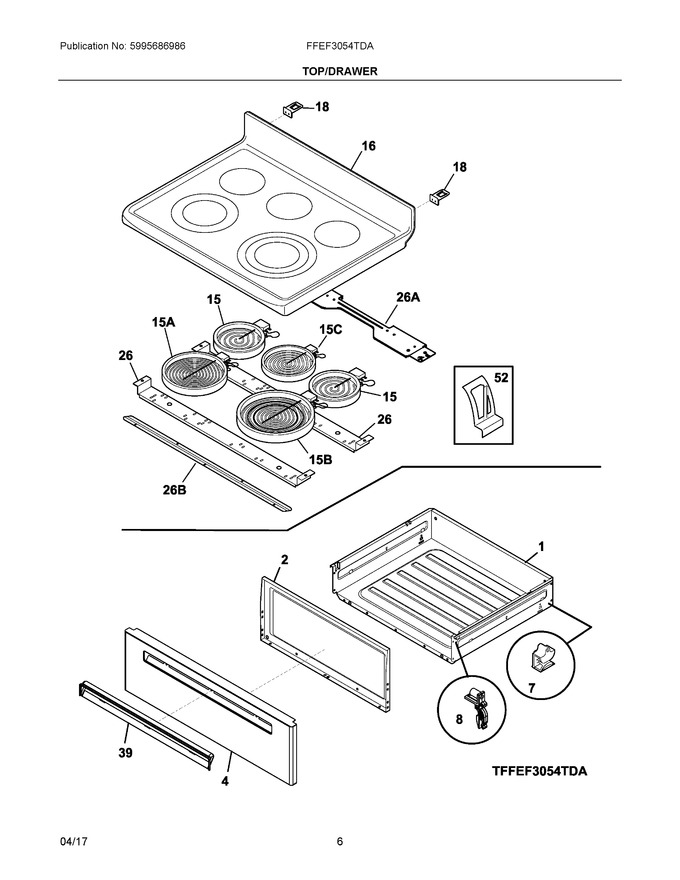

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408705)			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	5304510526		Panel, Drawer, Black Stainless, W/integrtd Hole				$ 193.99
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
8	5304490938		Glide, Drawer, Front			Immediately	$ 14.41
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	5304508977		Main Top, Assembly, Glass, Black				$ 574.07
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	5304500986		Channel, Element Support, (2)				$ 41.68
39	5304511287		Handle, Drawer, Black, Insert		Appelez-nous	-
52	316461700		Clip, Element Mtg				$ 12.05
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15B	316291200		Element, Surface, 12", 2700w			Immediately	$ 235.31
15C	140273621015		Element, Surface, Warmer, 100 W   (Replaces: 316289800)			Immediately	$ 35.77
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NI	316580475		Harness, Wiring, Surface Units				$ 132.35
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28

    View Diagram in Separate Window       Print Part List
