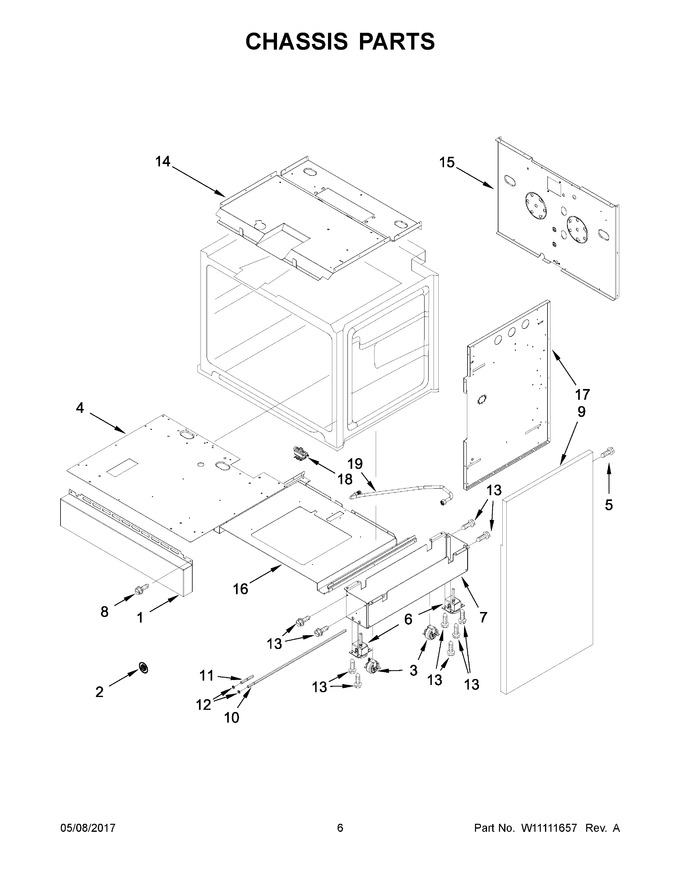

04 - Chassis Parts


05 - Oven Parts


06 - Top Venting


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10145765		Kickplate				$ 89.37
2	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.01
3	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 38.86
4	W10145380		Duct, Bottom		Appelez-nous	-
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
6	W10859931		Leveler   (Replaces: 9760860)				$ 101.59
7	W10249333		Base, Leveling Leg				$ 250.47
8	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
9	WPW10250465		Panel, Side (left)   (Replaces: W10250465)				$ 343.68
10	W10115869		Shaft, Long			Immediately	$ 93.74
11	W10115793		Shaft, Short				$ 65.00
12	489504		E-ring				$ 6.35
13	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
14	W10145374		Chassis, Top		Appelez-nous	-
15	W10145356		Chassis, Back		Appelez-nous	-
16	W10145371		Chassis, Bottom		Appelez-nous	-
17	W10269206		Chassis, Side (left)				$ 201.67
18	W11239228		Valve, Dual   (Replaces: W10145680)			Immediately	$ 288.82
19	W10145701		Tube, Valve				$ 151.49
17A	W10269205		Chassis, Side (right)				$ 201.88
9A	W11333303		Panel, Side (right)   (Replaces: W10250464)				$ 361.21
