01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

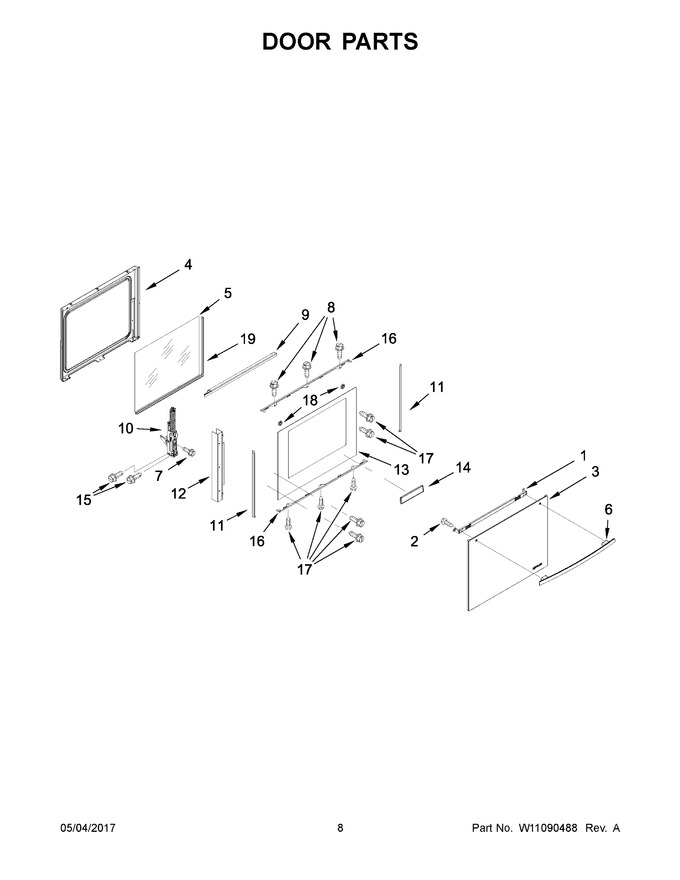

1	W10541911		Bracket, Glass Upper Handle			Immediately	$ 34.22
2	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.16
3	W10541871		Assembly, Outer Door (stainless)		Appelez-nous	-
4	W10902192		Liner, Door   (Replaces: W10826568)				$ 282.60
5	W11339500		Glass, Inner   (Replaces: W10813616)				$ 146.72
6	W10550998		Assembly, Door Handle (black)		Appelez-nous	-
7	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
8	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 12.65
9	W11251351		Scoop, Door (black)   (Replaces: W10613791)			Immediately	$ 119.72
10	W10885517		Hinge, Slow Close (black Models)				$ 95.81
11	W10634236		Trim, Door Side (black)		Appelez-nous	-
12	W11744483		Rail, Vertical Support   (Replaces: W10813139)			Immediately	$ 65.30
13	WPW10541892		Assembly, Outer Door (black)   (Replaces: W10541892)				$ 353.76
14	WPW10214168		Badge (black)   (Replaces: W10190724)				$ 73.67
15	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.26
16	W10813140		Rail, Horizontal Support			Immediately	$ 151.89
17	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
18	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 12.69
19	W11673273		Spacer, Glass   (Replaces: W10813142)			Immediately	$ 26.60
10A	W11226493		Hinge, Slow Close (stainless Models)   (Replaces: W10885516)				$ 97.51
14A	WPW10214168		Badge (stainless)   (Replaces: W10214168)				$ 73.67
6A	W11195001		Assembly, Door Handle (stainless)   (Replaces: W10551013)				$ 196.68
9A	W11025120		Scoop, Door (stainless)   (Replaces: W10551024)				$ 105.44

    View Diagram in Separate Window       Print Part List
