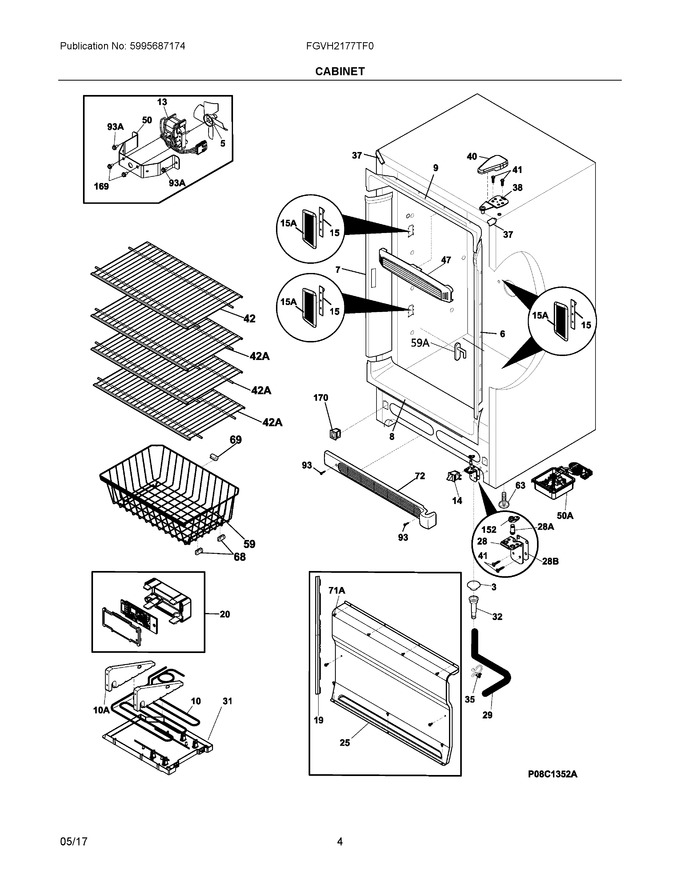

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297437300		Fan Blade				$ 7.46
6	297435605		Breaker				$ 51.57
7	297435604		Breaker, U21, W/lock				$ 58.50
8	297403902		Breaker, Bottom				$ 60.82
9	297403901		Breaker, Top				$ 55.42
10	297334500		Heater-drain Pan				$ 72.30
13	297309000		Fan Motor Evap 115v			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp   (Replaces: 216822901)			Immediately	$ 70.16
15	242196204		Light Board, 3 Led Cluster			Immediately	$ 66.02
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
20	5304500030		Network Interface Unit		Appelez-nous	-
25	297099251		Cover-evaporator				$ 109.93
26	297415900		Ramp, Door Closer			Immediately	$ 24.74
28	297416301		Hinge, Reversible, Bottom Rh				$ 15.18
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	297165803		Pan-drain		Appelez-nous	-
32	5304511843		Drain   (Replaces: 297382000)				$ 13.74
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273906		Trim-cabinet Corner, Gray				$ 7.23
38	297283803		Hinge-upper			Immediately	$ 19.52
40	5304504068		Hinge Cover, Grey		Appelez-nous	-
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	297441907		Shelf, 14.50 X 27.88		Appelez-nous	-
47	297192903		Baffle, Air			Immediately	$ 25.31
50	216394050		Bracket, Fan Motor Mount				$ 22.75
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
68	08009560		Glide-basket				$ 35.25
69	5305878546		Bumper-basket				$ 7.23
72	297387705		Grille/kickplate, Gray				$ 72.45
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.55
152	5304511026		Closer, Bearing Hinge   (Replaces: 297416000)			Immediately	$ 10.13
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280403		Valve, Breather				$ 21.69
10A	297177400		Bracket, (2), Drain Pan		Appelez-nous	-
15A	242202701		Lens, 3 Led Cluster				$ 30.47
28A	297438300		Pin, Bottom Hinge				$ 7.23
42A	297441906		Shelf, 14.50 X 23.88		Appelez-nous	-
50A	5304506271		Board Assembly, W/housing		Appelez-nous	-
59A	216486500		Stop-basket, (2)				$ 20.58
59B	5304506269		Basket, Bottom		Appelez-nous	-
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	5304496697		Cover, Access, Machine Compt.		Appelez-nous	-
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	5304508314		Energy Guide		Appelez-nous	-
NI	5304500015		Harness, Niu		Appelez-nous	-
NI	125963-48		Insulation, 24", Suction Line   (Replaces: 297001704)			Immediately	$ 59.16
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIA	216502400		Grommet-shelf Mtg				$ 16.63
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
