SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram

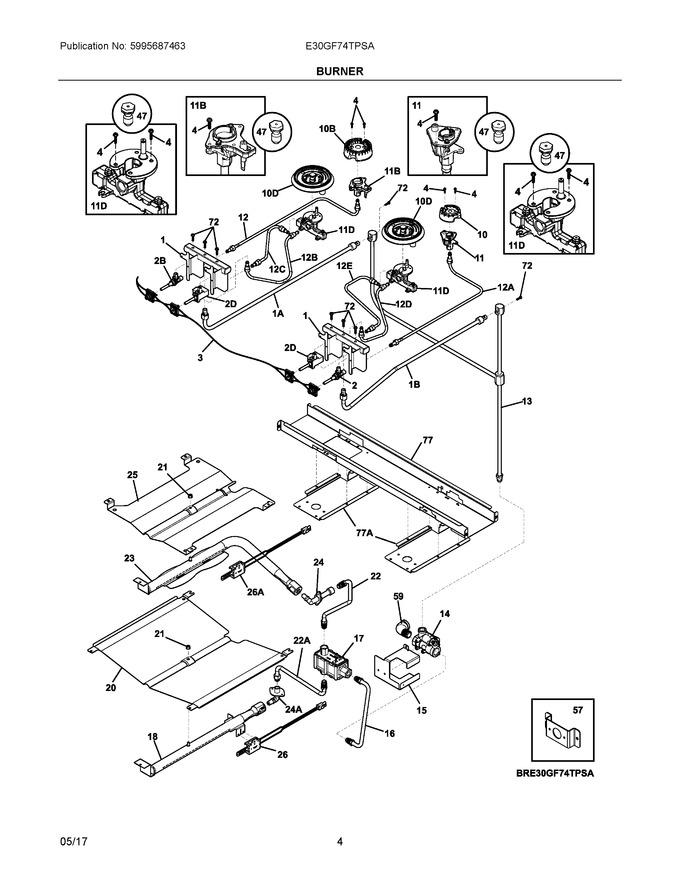

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509807		Manifold, Tube, 30", 4 Valve		Appelez-nous	-
2	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
3	5304509821		Harness Assembly, Ignition, W/switches				$ 91.43
4	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
10	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
12	318366728		Tube, 14k Burner, Lh Rear		Appelez-nous	-
13	5304509828		Tube Assembly, Regulator To, Manifolds		Appelez-nous	-
14	5304521339		Regulator, Pressure   (Replaces: 316416700)			Immediately	$ 105.42
15	5304509826		Bracket, Regulator		Appelez-nous	-
16	5304511623		Tube, Safety To Reg		Appelez-nous	-
17	5303210798		Valve, Safety			Immediately	$ 587.56
18	139077700		Burner Assembly, Bake, W/bracket		Appelez-nous	-
20	139005100		Baffle, Bake Burner				$ 95.68
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	808535501		Tube, Safety To Broil		Appelez-nous	-
23	139007101		Burner, Broil   (Replaces: 139007100)				$ 116.24
24	316409703		Elbow, Mixer, Broil				$ 138.70
25	316401301		Baffle, Broil Burner				$ 173.57
26	139013700		Ignitor, Burner, Bake			Immediately	$ 171.52
47	808695303		Lp Conversion Kit		Appelez-nous	-
57	5304498471		Bracket, Elbow Support		Appelez-nous	-
59	5304509831		Connector, Pipe, 90 Deg		Appelez-nous	-
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
77	318355502		Bracket, Channel Mtg.		Appelez-nous	-
10B	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10D	5304501023		Burner Assembly, G5				$ 165.99
11B	316543204		Ignitor/orifice Assy., Top Burner, 14k				$ 12.33
11D	316440100		Ignitor/orifice Assy., Top Burner, Twin, 17k, W/holder				$ 167.98
12A	318366727		Tube, Burner, Rh Rear, 5k		Appelez-nous	-
12B	807544011		Tube, Burner, Left Front, Dual Main		Appelez-nous	-
12C	807544012		Tube, Burner, Left Front, Dual Simmer		Appelez-nous	-
12D	807544013		Tube, Burner, Right Front, Dual Main		Appelez-nous	-
12E	807544014		Tube, Burner, Right Front, Dual Simmer		Appelez-nous	-
1A	318305403		Tube, Manifold, Lh, Interconnect				$ 93.87
1B	318305404		Tube, Manifold, Rh, Interconnect				$ 70.16
22A	808535401		Tube, Safety To Bake		Appelez-nous	-
24A	318347215		Elbow, Mixer, Bake		Appelez-nous	-
26A	139013701		Ignitor, Burner, Broil				$ 170.81
2B	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
2D	316272310		Valve, Dual Burner, Twin				$ 187.32
77A	318363803		Bracket, Channel Mtg		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316566901		Sleeve, Insulator				$ 12.89
NI	5304509841		Harness, Wiring, Ignitor Module		Appelez-nous	-
NIA	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NIA	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
