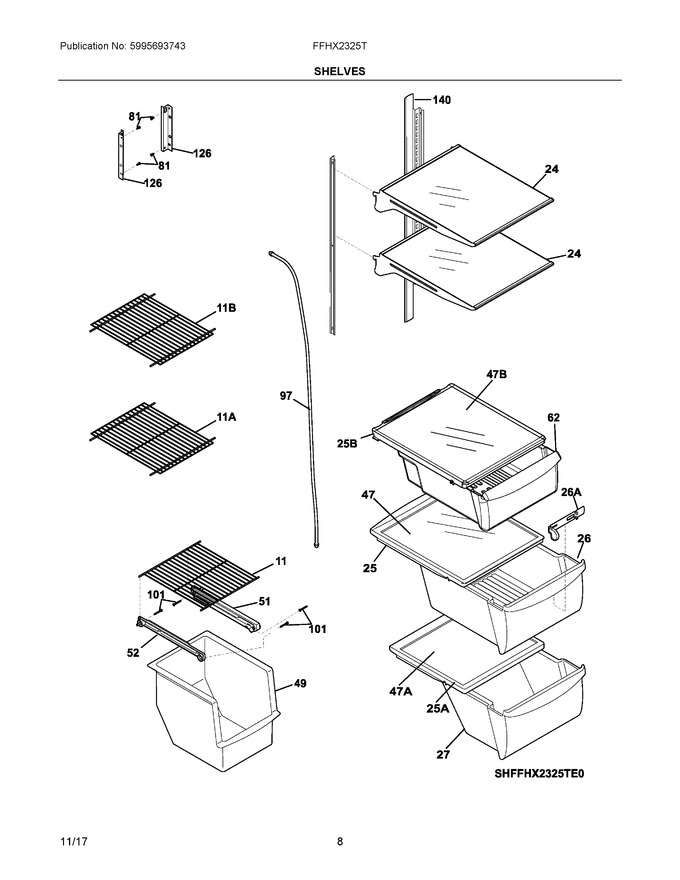

SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657601		Shelf, Flip Up, Wire				$ 79.48
24	5304512784		Shelf Assembly, Cantilever, Glass, W/trim   (Replaces: 5304511776)				$ 111.48
25	241974201		Cover-crisper Pan, Upper				$ 94.98
26	240354723		Pan-crisper, Upper			Immediately	$ 164.31
27	240354805		Pan-crisper, Lower   (Replaces: 240354806)				$ 167.69
47	240350613		Insert-pan Cover, Glass   (Replaces: 241992910)				$ 123.62
49	240564301		Basket-sliding				$ 131.97
51	240343002		Hanger-basket, Rh				$ 65.22
52	240343102		Hanger-basket, Lh				$ 69.77
62	241974404		Pan-meat				$ 107.87
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
97	242220208		Tube-water Inlet, .315 - 97.50", Natural			Immediately	$ 43.24
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
140	241812502		Channel, Wtr Tube Cover				$ 76.97
11A	5304532465		Shelf, Fixed, Freezer   (Replaces: 241657501)				$ 54.10
11B	5304532464		Shelf, Fixed Upper, Freezer   (Replaces: 241657503)		Appelez-nous	-
126A	241674402		Channel, Auger Mtg, Rh				$ 43.24
25A	240354602		Cover-crisper Pan, Lower			Immediately	$ 88.46
25B	241973101		Cover-meat Pan			Immediately	$ 87.77
26A	240351101		Control-humidity			Immediately	$ 43.95
47A	240350614		Insert-pan Cover, Glass				$ 145.60
47B	241992909		Insert-pan Cover, Glass				$ 117.66
NI	5304511771		Label, Energy Guide		Appelez-nous	-
NI	240362101		Clip-slide, Cover				$ 47.03
NIA	240349801		Clip-slide, Pan				$ 20.48
NIA	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NIB	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63

    View Diagram in Separate Window       Print Part List
