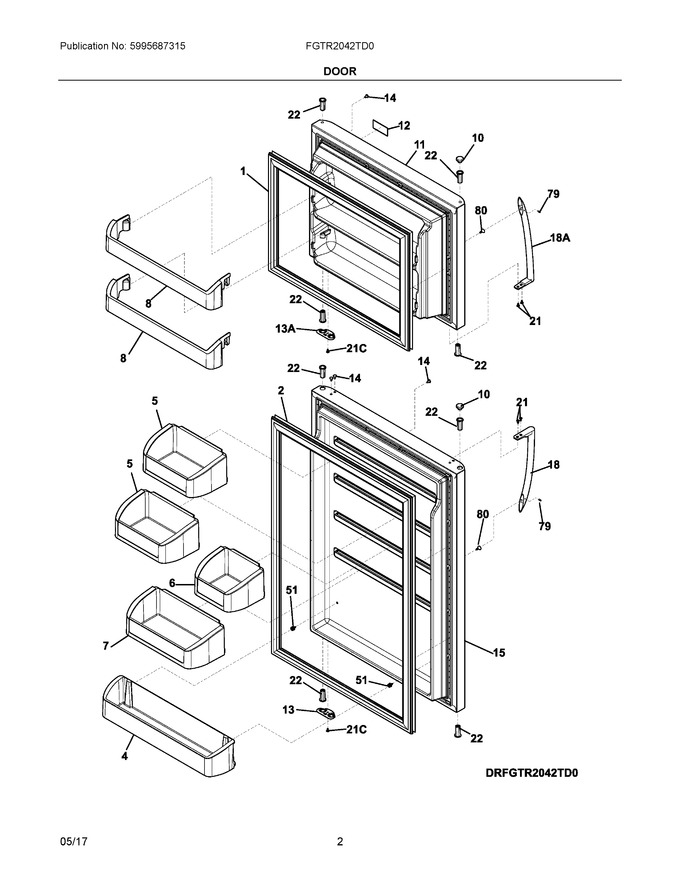

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193211		Gasket-frzr Door, Black, Magnetic				$ 187.11
2	242193214		Gasket-refr Door, Black, Magnetic				$ 190.85
4	5304498927		Bin, Door, Full Width, White, Refrigerator, Pseudo				$ 92.14
5	242308202		Bin, Door, 1/2 Width, W/trim				$ 63.32
6	242324202		Bin, Door, 1/3 Width, W/trim				$ 55.10
7	242324302		Bin, Door, 2/3 Width, W/trim				$ 79.97
8	5304498909		Bin, Door, Clear, Freezer, (2), Pseudo			Immediately	$ 63.29
10	240381303		Plug-button, Black, Hinge Brg Hole				$ 69.77
11	807460031		Freezer Door, Complete, Black Stainless				$ 292.36
12	5304510904		Nameplate, Black Stainless				$ 54.60
13	240312422		Door Stop, Black, Ref				$ 15.17
14	240494003		Plug-button, Black				$ 18.20
15	807460152		Refrigerator Door, Complete, Black Stainless				$ 452.29
18	241977509		Handle, Door, Black Stainless, Ref Rhs, W/set Screw				$ 217.58
21	240383407		Screw, Truss Hd Quad, 10 X 16, Black   (Replaces: 240383408)				$ 12.76
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 7.59
51	242039702		Screw, Shoulder, #10-16, (2)				$ 4.26
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop, Black, Frzr				$ 21.27
18A	241977510		Handle, Door, Black Stainless, Frz Rhs, W/set Screw				$ 217.58
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
NI	5304508804		Touch Up Paint, Pen, Black Stainless		Appelez-nous	-
NIA	241601001		Wrench, Allen		Appelez-nous	-
