SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram

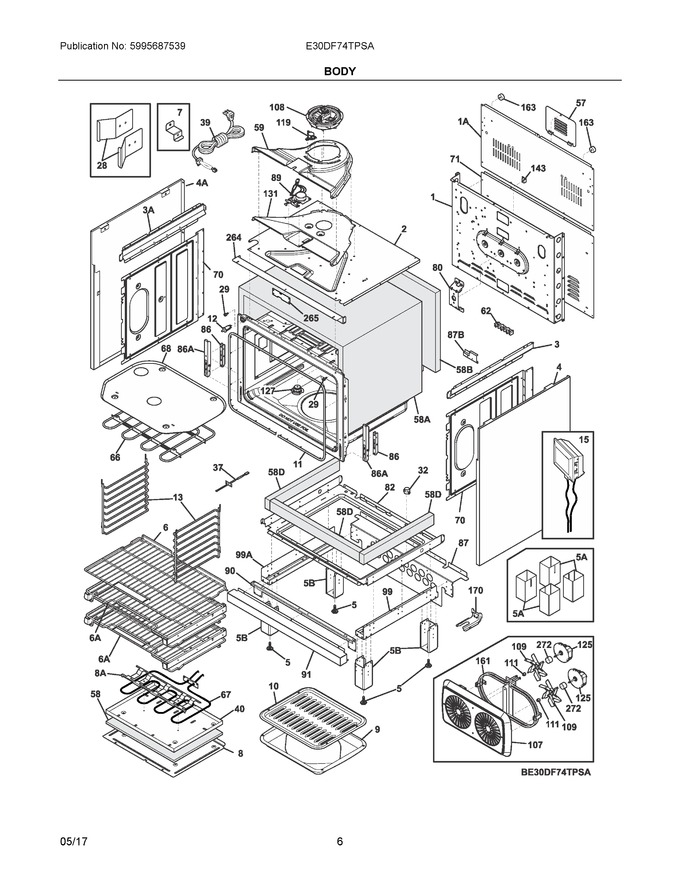

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017306		Panel, Main Back		Appelez-nous	-
2	139078200		Shield, Insulation, Top		Appelez-nous	-
3	139075400		Panel, Rh Side, Upper		Appelez-nous	-
4	5304498468		Panel, Body Side, Rh		Appelez-nous	-
5	318175506		Screw, Leveling				$ 38.28
6	808713913		Rack Assembly, Ladder, Nickel, W/handle				$ 143.87
7	139077800		Bracket, Main Back, (4)		Appelez-nous	-
8	318359500		Panel, Service				$ 140.09
9	316081901		Pan, Broiler, Cobalt Blue				$ 74.32
10	316082001		Insert, Broiler Pan, Cobalt Blue				$ 53.09
11	807545502		Seal, Oven Door, Gray				$ 140.34
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	808713901		Ladder Assembly, Kit, Nickel, W/2 Ladders				$ 150.97
15	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
28	318369301		Bracket, Side Panel, (2)		Appelez-nous	-
29	316517600		Bumper, Front, Main				$ 12.05
32	5304508576		Bushing, Power Cord, Snap Tie		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
39	5304507342		Cord, Range Power, 4 Wire				$ 100.89
40	318297303		Box, Bake Element				$ 125.84
57	316283600		Cover, Access				$ 12.50
58	318294912		Insullation, Bake Element				$ 97.17
59	139078002		Duct, Cooling Fan, Top				$ 78.67
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	5304521861		Element, Broil, 8 Pass, 4000w   (Replaces: 139000900)			Immediately	$ 90.25
67	5304521880		Element, Bake, 2500w, 8 Pass   (Replaces: 139026700)			Immediately	$ 114.97
68	807890404		Shield, Broil Element		Appelez-nous	-
70	139000601		Shield, Insulation, Sides, (2)   (Replaces: 139000600)				$ 72.05
71	139077200		Panel, Back, Lower		Appelez-nous	-
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	139008201		Shield, Insulation, Lower		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	5304509833		Bracket, Cable Mounting		Appelez-nous	-
89	5304528836		Motor, Latch Assembly   (Replaces: 139078301)			Immediately	$ 76.34
90	5304498481		Support, Front, Lower		Appelez-nous	-
91	5304498466		Trim, Bottom, Stainless		Appelez-nous	-
99	5304498479		Support, Lower, Rh		Appelez-nous	-
107	139001502		Cover, Dual Fan, Cobalt, Convection				$ 80.00
108	318575612		Motor Assembly, Cooling Fan			Immediately	$ 196.61
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	807144901		Thermostat, Safety, 110c Deg				$ 58.39
125	139008600		Motor, Fan, Convection				$ 189.70
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	139078102		Duct, Cooling Fan, Bottom				$ 64.49
143	318172904		Support, Wire		Appelez-nous	-
161	5304522063		Element, Convection, Dual, 2500w   (Replaces: 139006600)				$ 132.71
163	318531700		Spacer, (2)		Appelez-nous	-
170	316112008		Anti Tip Kit, Assy, 30", W/template		Appelez-nous	-
264	807057101		Trim, Vent Support, Black		Appelez-nous	-
265	807050701		Trim, Cover, Black, Vent Motor		Appelez-nous	-
272	139021700		Tube, Convection Fan				$ 17.72
1A	318353110		Panel, Back, Upper		Appelez-nous	-
3A	139075401		Panel, Lh Side, Upper		Appelez-nous	-
4A	5304498467		Panel, Body Side, Lh				$ 298.46
58A	139001700		Insulation, Oven Wrapper, Top & Sides		Appelez-nous	-
58B	139020202		Insulation, Oven Back				$ 44.46
58D	139020301		Insulation, Sides, (2)		Appelez-nous	-
5A	807020802		Cover, Leg, (4)		Appelez-nous	-
5B	5304498486		Support, Leg, (4)		Appelez-nous	-
6A	808713905		Glide Rack, Assembly, Nickel, W/handle				$ 334.43
86A	809138301		Bracket, Support, Hinge Recpt.		Appelez-nous	-
87B	5304508575		Bracket, Terminal Block		Appelez-nous	-
8A	318313601		Bracket, Bake Element				$ 71.45
99A	5304498480		Support, Lower, Lh		Appelez-nous	-
NI	5304509812		Harness, Wiring, Main		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 49.32
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	5304481623		Screw, #10-32x1/2				$ 9.61
NIAA	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIB	5303289910		Screw, Truss Sqdr, 8a X 1				$ 5.67
NIC	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
