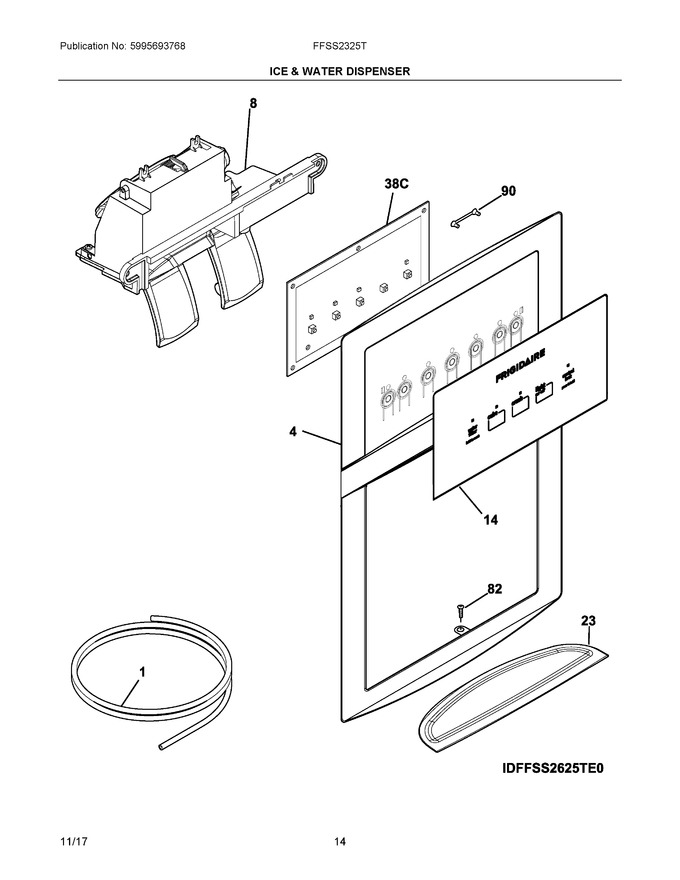

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door |
|
Immediately | $ 20.56 | ||||
| 4 | 241946811 | Cover-module, White |
|
$ 147.47 | |||||
| 8 | 242083306 | Module-dispenser, Assembly, White, Complete |
|
$ 270.73 | |||||
| 14 | 242083021 | Label-module Cover, White |
|
$ 58.59 | |||||
| 23 | 241947001 | Drip Tray, White |
|
$ 19.85 | |||||
| 82 | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| 90 | 241732703 | Light Pipe, Reflector |
|
- | |||||
| 38C | 242053503 | Board-control |
|
Immediately | $ 268.46 | ||||
| NI | 5304521768 | Harness, Wiring, Dispenser Door (Replaces: 242207001) |
|
$ 38.28 | |||||
| NIA | 218976439 | Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door |
|
$ 19.13 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 20.56 | ||||
| NICA | 241953902 | Screw, Quad Hilo, #8-18 X 0.25 (Replaces: 241953907) |
|
Immediately | $ 17.11 | ||||
| NID | 242220206 | Tube-water Inlet, .315 - 97.50", Brown/tan |
|
$ 46.78 |
