SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System

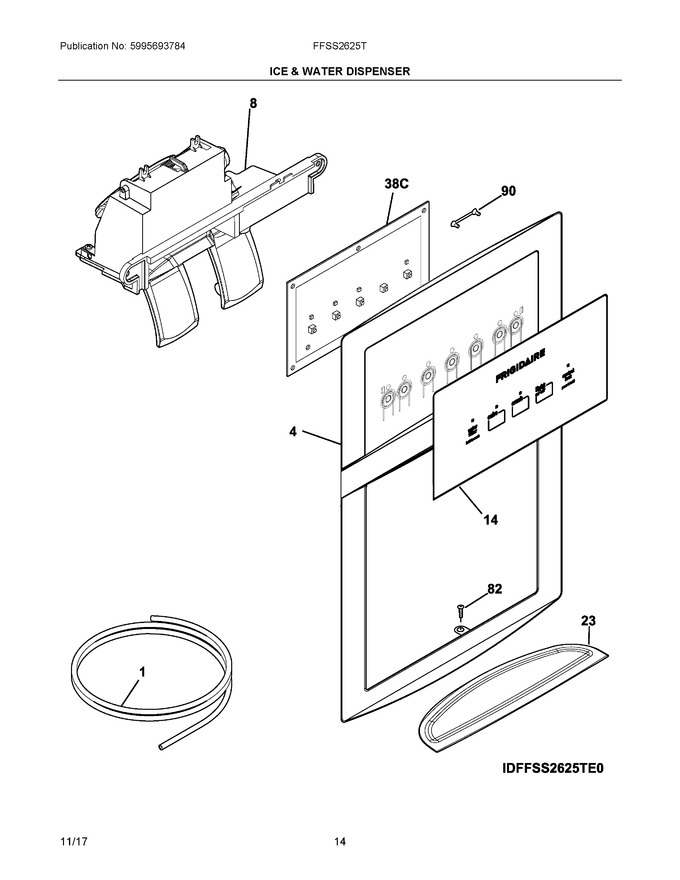

08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976438		Tube, Water, 62", Natural, Door			Immediately	$ 20.56
4	241946813		Cover-module, Black				$ 94.11
8	242083308		Module-dispenser, Assembly, Black, Complete				$ 250.19
14	242083022		Label-module Cover, Black		Appelez-nous	-
23	241947003		Drip Tray, Black				$ 23.39
82	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
90	241732703		Light Pipe, Reflector		Appelez-nous	-
38C	242053503		Board-control			Immediately	$ 268.46
NI	5304521768		Harness, Wiring, Dispenser Door   (Replaces: 242207001)				$ 38.28
NIA	218976439		Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door				$ 19.13
NIB	241850615		Tube-water Inlet, Inlet Valve, To I/m Inlet   (Replaces: 218976915)				$ 34.73
NIC	240561701		Seal-water Inlet, Inlet Valve, To Ice Maker			Immediately	$ 20.56
NICA	241953902		Screw, Quad Hilo, #8-18 X 0.25   (Replaces: 241953907)			Immediately	$ 17.11
NID	242220206		Tube-water Inlet, .315 - 97.50", Brown/tan				$ 46.78

    View Diagram in Separate Window       Print Part List
