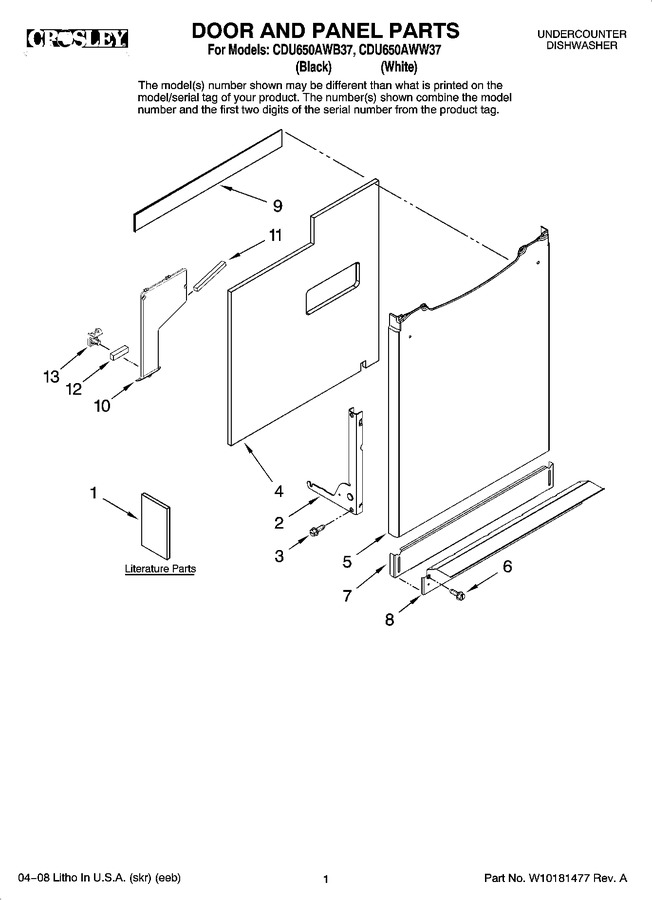

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99003439 | Energy Guide |
|
- | |||||
| 1 | Y6920161 | Guide, Use & Care |
|
- | |||||
| 1 | W10158012 | Instructions, Installation |
|
- | |||||
| 2 | W10135017 | Bracket, Hinge (left) |
|
- | |||||
| 2 | W10135018 | Bracket, Hinge (right) |
|
- | |||||
| 3 | 99001075 | Screw |
|
$ 5.81 | |||||
| 4 | Y99002587 | Pad, Foam |
|
- | |||||
| 5 | 99002768 | Panel, Front (black) |
|
- | |||||
| 5 | 99002770 | Panel, Front (white) |
|
- | |||||
| 6 | 99001194 | Screw (white) |
|
$ 6.18 | |||||
| 6 | WP6-912366 | Screw (black) (Replaces: 912366) |
|
$ 7.29 | |||||
| 7 | 99002766 | Panel, Toe (white) |
|
- | |||||
| 7 | 99002765 | Panel, Toe (black) |
|
- | |||||
| 8 | 99002860 | Support, Front (white) |
|
- | |||||
| 8 | 99002859 | Support, Front (black) |
|
- | |||||
| 9 | W10117748 | Insulation, Door |
|
$ 24.37 | |||||
| 10 | 99003540 | Liner, Door Secondary |
|
- | |||||
| 11 | 99003481 | Strip, Foam (long) |
|
$ 8.34 | |||||
| 12 | WPW10153533 | Strip, Foam (shrt) (Replaces: 99003582) |
|
Immediately | $ 137.39 | ||||
| 13 | 99003541 | Bracket, Secondary Door Liner |
|
- |
