SELECT A DIAGRAM

01 - Cover Sheet

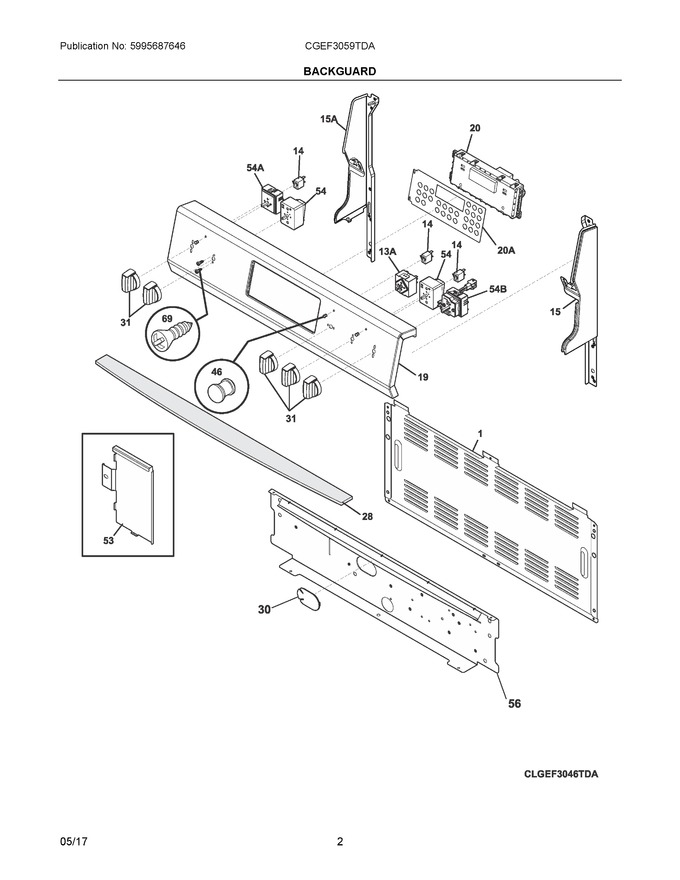

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 57.64
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304509241		Panel, Backguard, Black Stainless				$ 236.99
20	5304509229		Controller, Electronic, Es541mp			Immediately	$ 361.22
28	316528700		Insulation, Manifold Panel				$ 89.31
30	316577600		Plug, Button, Oval, Harness				$ 14.89
31	5304509239		Knob, Infinite Switch, Black Stainless			Immediately	$ 60.67
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
53	316355000		Shield, Flue, Inner		Appelez-nous	-
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
56	316234045		Shield, Backguard, Black, Inner   (Replaces: 316234013)				$ 66.74
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
13A	5304508926		Switch, Infinite, Warmer			Immediately	$ 84.18
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
20A	316419841		Overlay, Clock, Black, Es541			Immediately	$ 33.92
54A	316238201		Switch, Infinite Radian, Dual			Immediately	$ 89.00
54B	5304490134		Switch, Infinite, Triple				$ 117.66
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
