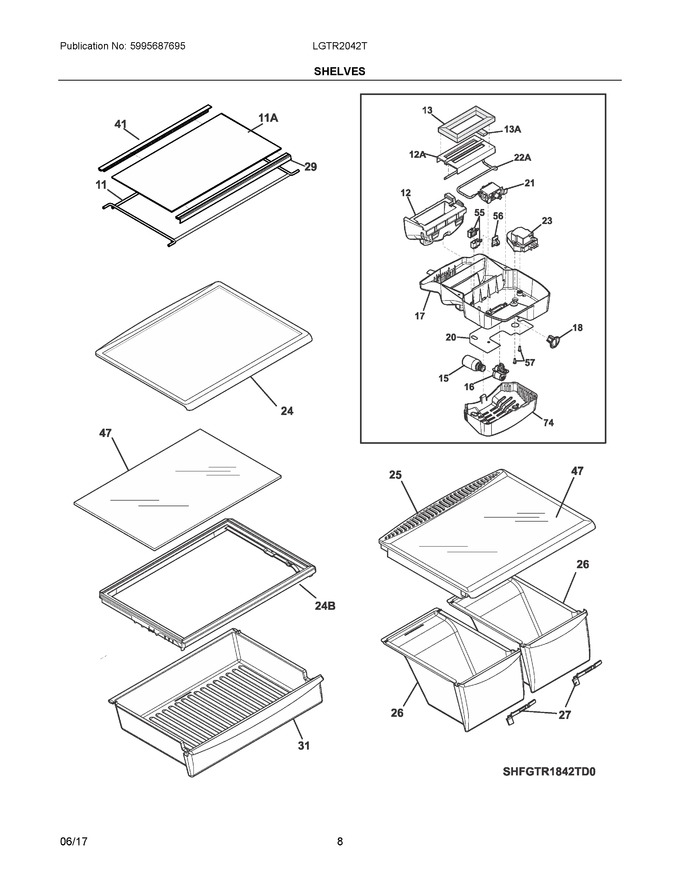

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	242087801		Frame-shelf, Full Width		Appelez-nous	-
12	5304511163		Diffuser-air				$ 42.81
13	242240603		Gasket Seal				$ 78.94
15	5304517886		Light Bulb, Led   (Replaces: 5304498578)			Immediately	$ 73.06
16	240590403		Socket-light				$ 26.54
17	530451165		Control Box Housing		Appelez-nous	-
18	240360801		Knob, Temp Control				$ 43.95
20	5304511166		Heat Shield		Appelez-nous	-
21	241537107		Control Cold Foshan				$ 143.63
23	241705102		Timer-defrost			Immediately	$ 113.51
24	240358928		Shelf-"spill-safe", Sliding   (Replaces: 240358927)			Immediately	$ 174.36
25	242201803		Cover-crisper Pan				$ 123.17
26	242218506		Pan, Crisper, (2), W/humid Cntl				$ 119.78
27	242215901		Slide, Humidity Contrl				$ 18.95
29	242110901		Trim-shelf, Front		Appelez-nous	-
31	242322203		Meat Pan, Fw Pantry, W/slide Clips				$ 258.92
41	242111001		Trim-shelf, Rear				$ 19.24
47	240350609		Insert-pan Cover, Glass			Immediately	$ 162.30
55	530451167		Holder, Electronic Test		Appelez-nous	-
56	218515401		Clip-grille				$ 17.72
57	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 17.01
74	5304511168		Light Shield		Appelez-nous	-
11A	242087901		Glass-shelf, Full Shelf		Appelez-nous	-
12A	5304511164		Plate Diffuser		Appelez-nous	-
13A	240346703		Foam Tape   (Replaces: 240346712)				$ 2.28
22A	240468203		Sleeve-plastic				$ 78.87
24B	242205404		Cover, Deli Pan, Full Width				$ 116.03
NI	5304510956		Label, Energy Guide		Appelez-nous	-
NIA	240349801		Clip-slide, Pan				$ 20.48
NIA	5303299664		Spacer, Shelf				$ 24.10
NIA	240362101		Clip-slide, Cover				$ 47.03
NIBA	241872203		Support-beam				$ 53.85
