01 - Cover Sheet

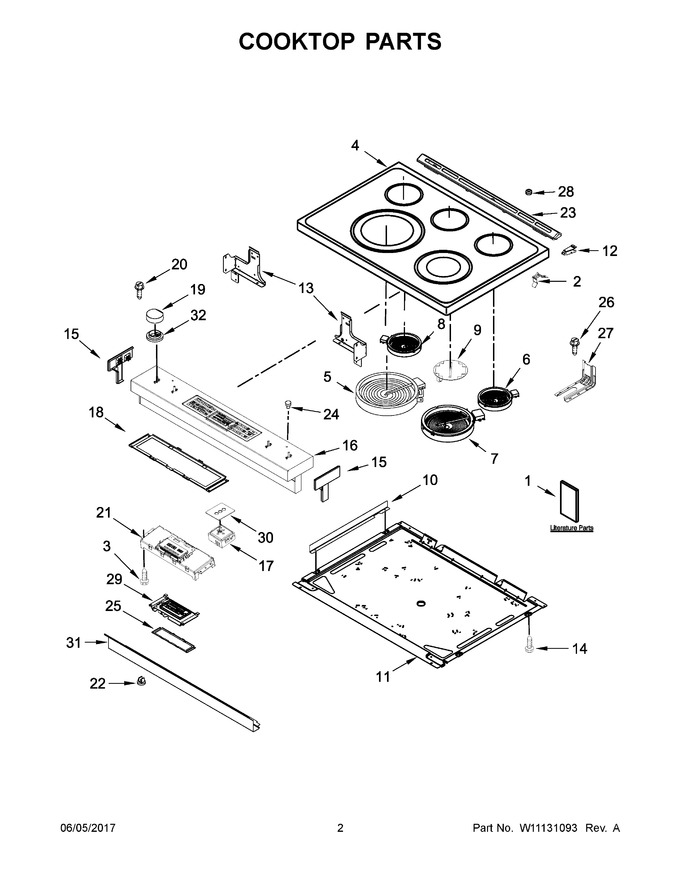

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10665255 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 4 | W10738935 | Cooktop (black) (Replaces: W10536298) |
|
$ 575.80 | |||||
| 5 | W10823720 | Element (3000w) (left Front) (Replaces: W10187839) |
|
Immediately | $ 302.91 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 201.29 | ||||
| 8 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 9 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 113.96 | |||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 66.78 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 155.66 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 63.54 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 25.76 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.25 | |||||
| 15 | W10557750 | Endcap (black (left)) |
|
$ 122.55 | |||||
| 16 | W10921957 | Console (black) (Replaces: W10901076) |
|
$ 667.44 | |||||
| 17 | W11129442 | Switch, Infinite (left Front) (Replaces: W10437097) |
|
Immediately | $ 90.51 | ||||
| 18 | W10557780 | Bracket, Control |
|
$ 31.44 | |||||
| 19 | W10505762 | Knob (black) |
|
$ 123.57 | |||||
| 20 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 21 | W11297273 | Control Mrc2 (Replaces: W10759270) |
|
$ 441.68 | |||||
| 22 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 11.28 | ||||
| 23 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 134.73 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 25 | W10558372 | Bracket, Control |
|
$ 21.51 | |||||
| 26 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 28 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 18.83 | ||||
| 29 | W11120573 | Assembly, Display (Replaces: W10759324) |
|
Immediately | $ 438.96 | ||||
| 30 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.06 | ||||
| 31 | W10565660 | Console, Lower Panel (black) |
|
- | |||||
| 32 | W10663811 | Bezel (black) |
|
- | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 67.37 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 25.76 | |||||
| 13B | W10598048 | Bracket, Console (center) |
|
$ 22.05 | |||||
| 15A | W10557753 | Endcap (black (right)) |
|
- | |||||
| 15B | W10557751 | Endcap (stainless (left)) |
|
$ 144.73 | |||||
| 15C | W10557754 | Endcap (stainless (right)) |
|
$ 144.73 | |||||
| 16A | W10921961 | Console (stainless) (Replaces: W10901075) |
|
$ 479.74 | |||||
| 17A | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 94.18 | ||||
| 17B | W10917724 | Switch, Infinite (right Front And Left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 19A | W11233555 | Knob (stainless) (Replaces: W10505763) |
|
$ 70.92 | |||||
| 1A | W10896664 | Use And Care Guide |
|
- | |||||
| 1B | W10844271 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1F | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1G | W10902663 | Wiring Diagram (english/french) |
|
- | |||||
| 23A | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 121.73 | ||||
| 31A | W10565662 | Console, Lower Panel (stainless) |
|
$ 178.74 | |||||
| 32A | W10663810 | Bezel (stainless) |
|
$ 55.20 | |||||
| 4A | W10738936 | Cooktop (stainless) (Replaces: W10536299) |
|
Immediately | $ 660.68 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 76.28 | |||||
| NI | W10580307 | Harness, Main |
|
$ 293.60 | |||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 203.09 | ||||
| NI | W10580303 | Harness, Console |
|
$ 161.45 | |||||
| NI | W10664316 | Clip, Harness |
|
$ 17.97 | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 48.02 | ||||
| NI | W10580316 | Harness, Bake Drawer |
|
Immediately | $ 159.17 | ||||
| NI | W11226786 | Harness, Cooktop (Replaces: W10580249) |
|
Immediately | $ 207.22 |
