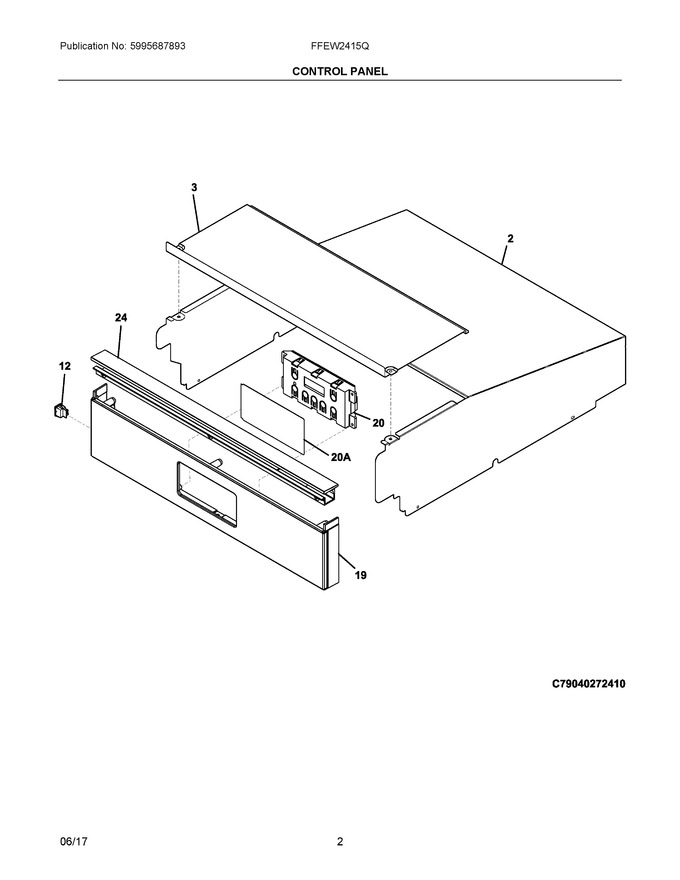

02 - Control Panel
03 - Body
04 - Door
05 - Wiring Diagram
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 139029900 | Cover, Wrapper, Top |
|
- | |||||
| 3 | 139030900 | Cover, Oven Top, Front |
|
- | |||||
| 12 | 5304527841 | Switch, Rocker, Black, Oven Light (Replaces: 316448700) |
|
Immediately | $ 11.38 | ||||
| 19 | 5304504305 | Control Panel, Assembly, White/black, W/overlay |
|
- | |||||
| 20 | 316455455 | Clock/timer, Electronic, Es100/105 |
|
- | |||||
| 24 | 139099501 | Trim, Vent, Black, Control Panel |
|
- | |||||
| 20A | 318213812 | Overlay, Clock, White, Es100 |
|
- | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 5304504225 | Screw, Plastite, 48 #7-18x12.7, (4) |
|
- |
