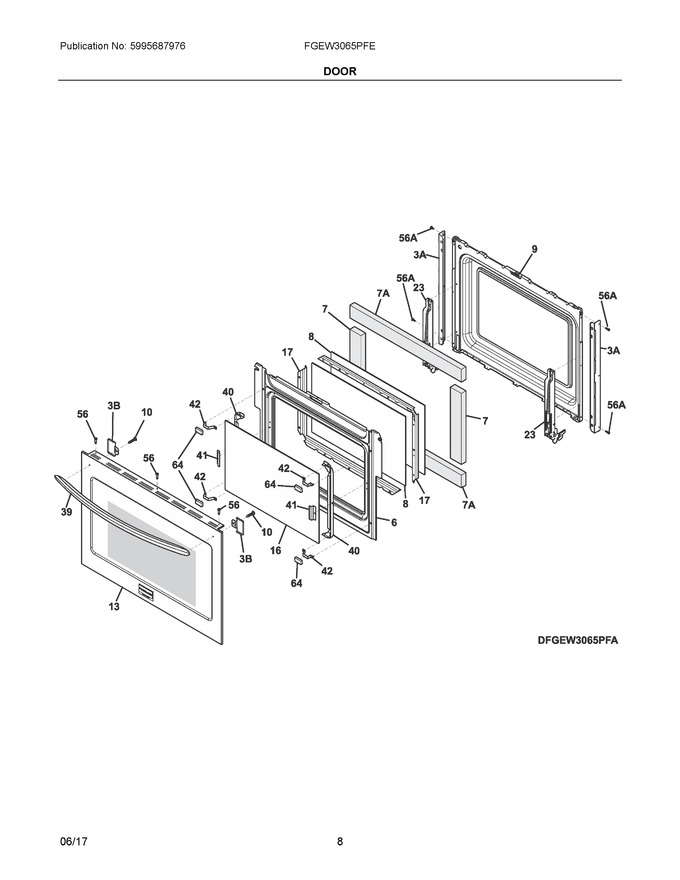

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 139006905 | Baffle, Door |
|
$ 121.34 | |||||
| 7 | 318372017 | Insulation, Door |
|
$ 16.30 | |||||
| 8 | 5304503232 | Glass, Oven Door, Inner (Replaces: 316117504) |
|
$ 116.95 | |||||
| 9 | 139000411 | Liner, Oven Door |
|
$ 152.43 | |||||
| 10 | 5304414648 | Screw, Handle Mtg. |
|
$ 14.18 | |||||
| 13 | 5304512283 | Door Assembly, Outer, Glass/steel, Stainless, W/trim-badge |
|
$ 495.06 | |||||
| 16 | 316446401 | Glass, Oven Door, Airwash (Replaces: 316446400) |
|
Immediately | $ 125.13 | ||||
| 17 | 318264731 | Spacer, Glass, (2) |
|
$ 72.05 | |||||
| 23 | 316575915 | Hinge, Oven Door, Lime (Replaces: 316575914) |
|
$ 166.09 | |||||
| 39 | 316554010 | Handle, Door/drawer, Stainless (Replaces: 316554008) |
|
Immediately | $ 168.44 | ||||
| 40 | 318242702 | Bracket, Glass Holder, Door, (2) |
|
$ 19.72 | |||||
| 41 | 318370602 | Bracket, Glass Panel, (2) |
|
$ 13.65 | |||||
| 42 | 318382302 | Bracket, Glass Retainer, (4) |
|
$ 50.81 | |||||
| 56 | 5303311306 | Screw, 8-18 X 0.375 |
|
- | |||||
| 64 | 318165800 | Spacer, Glass, Foam |
|
$ 17.72 | |||||
| 3A | 139014401 | Trim, Oven Door, Black, Side, (2), Vented |
|
$ 32.62 | |||||
| 3B | 318262111 | Cover, Rear Door, Black, (2) |
|
$ 54.60 | |||||
| 56A | 5303324184 | Screw, Truss Head, #8-32 X 3/8 (Replaces: 809136201) |
|
Immediately | $ 14.18 | ||||
| 7A | 318372016 | Insulation, Door |
|
$ 17.72 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
