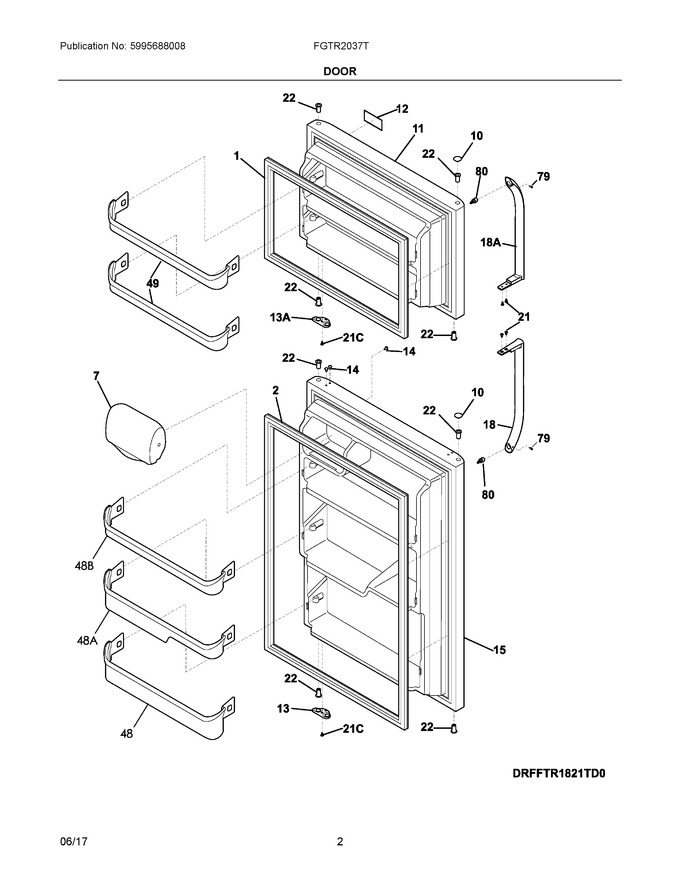

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193220		Gasket-frzr Door, Gray, Magnetic				$ 151.61
2	242193221		Gasket-refr Door, Gray, Magnetic				$ 125.16
7	240337712		Door-dairy, W/o Graphics, Clear   (Replaces: 240337703)			Immediately	$ 36.41
10	240381307		Plug-button, Gray, Hinge Brg Hole, (2)			Immediately	$ 16.69
11	242178027		Door, Freezer, Stainless				$ 517.96
12	5304512150		Nameplate, Chrome			Immediately	$ 58.15
13	240312424		Door Stop, Gray, Ref   (Replaces: 240312420)				$ 14.41
14	240494007		Plug-button, Gray			Immediately	$ 15.92
15	807460165		Refrigerator Door, Complete, Stainless				$ 366.89
18	241977901		Handle-door, Stainless, Refr-rh/frzr-lh   (Replaces: 241977501)				$ 336.65
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door			Immediately	$ 52.37
49	240495805		Bin-door, Pseudo, Frzr				$ 50.94
58	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
79	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312419		Door Stop, Gray, Frzr				$ 16.30
18A	241977901		Handle-door, Stainless, Refr-lh/frzr-rh   (Replaces: 241977502)				$ 336.65
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
48A	240337901		Bin-door			Immediately	$ 52.13
48B	240338001		Bin-door			Immediately	$ 34.96
NIA	241601001		Wrench, Allen		Appelez-nous	-
