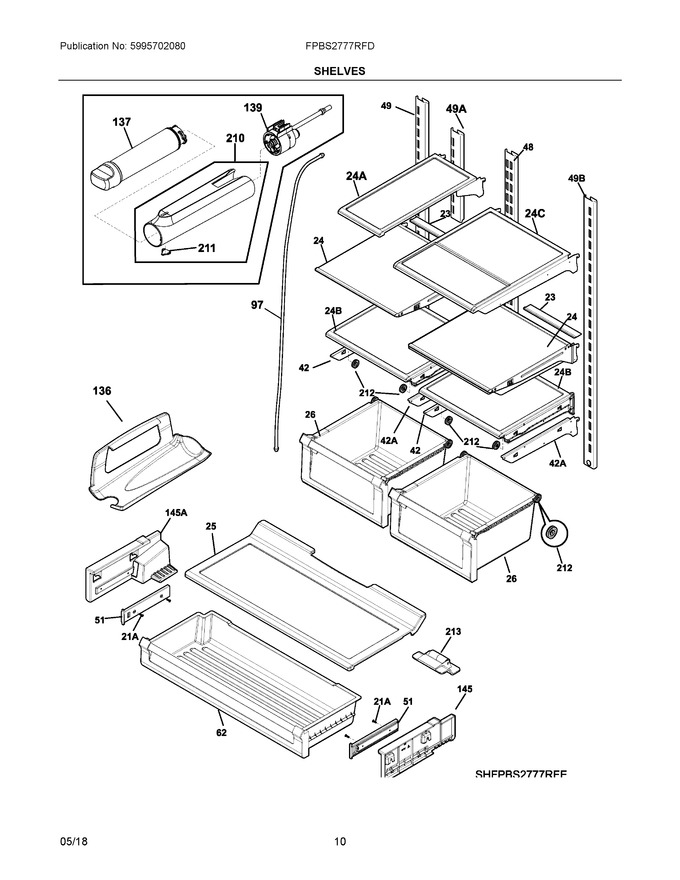

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 23 | 5304501541 | Gasket, Shelf, Rear, Air Flow |
|
$ 16.30 | |||||
| 24 | 242068717 | Shelf, 1/2 Width, Cantilever, W/rear Gasket |
|
$ 182.01 | |||||
| 25 | 5304508025 | Cover, Deli Drawer, W/glass |
|
Immediately | $ 157.74 | ||||
| 26 | 5304510278 | Pan-crisper, Assembly, W.roller, 26 |
|
$ 160.59 | |||||
| 42 | 5304508034 | Rail, Crisper Cover, Lh Side |
|
Immediately | $ 87.21 | ||||
| 48 | 242122101 | Channel-shelf Mtg, Center |
|
$ 80.09 | |||||
| 49 | 5304508035 | Channel-shelf Mtg, Side, Lh |
|
$ 97.83 | |||||
| 51 | 242197901 | Slide, Deli, (2) |
|
$ 133.96 | |||||
| 62 | 242096812 | Pan-deli |
|
$ 241.55 | |||||
| 97 | 242220119 | Tube-water, 97.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| 136 | 241657701 | Dispenser-can, White |
|
$ 57.41 | |||||
| 137 | 807946701 | Filter Assembly, Puresource U-ii, W/cap |
|
- | |||||
| 139 | 5304522623 | Manifold, Water Filter, 93.5", W/brown Tube, Filter Base To, Primary Valve (Replaces: 807931801) |
|
Immediately | $ 64.53 | ||||
| 145 | 5304508017 | Support, Deli Cover, Rh |
|
- | |||||
| 210 | 5303918723 | Housing, Water Filter, W/plug & Pad |
|
Immediately | $ 26.23 | ||||
| 211 | 807932201 | Plug, Filter Housing |
|
- | |||||
| 212 | 5304508016 | Roller, Crisper Pan |
|
Immediately | $ 9.42 | ||||
| 213 | 242010901 | Roller Assy, Deli Pan |
|
$ 49.62 | |||||
| 145A | 5304508018 | Support, Deli Cover, Lh |
|
$ 80.39 | |||||
| 21A | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 24A | 242200501 | Shelf-"spill-safe", Cantilever, 1/4 Width, Flip Up |
|
$ 197.17 | |||||
| 24B | 5304508067 | Cover, Crisper, W/glass |
|
Immediately | $ 145.89 | ||||
| 24C | 242235501 | Shelf-"spill-safe", Cantilever, Half Width, Slide Under |
|
$ 237.37 | |||||
| 42A | 5304508033 | Rail, Crisper Cover, Rh Side |
|
Immediately | $ 86.45 | ||||
| 49A | 5304531311 | Channel-shelf Mtg, Center, Icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122301 | Channel-shelf Mtg, Side, Rh |
|
$ 77.97 | |||||
| NI | 5304501219 | Energy Guide |
|
- | |||||
| NI | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| NI | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIA | 242039702 | Screw, Shoulder, #10-16, (2) |
|
$ 4.26 | |||||
| NIA | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50, (2) (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NICA | 5304501542 | Seal, Air, Half Shelf |
|
$ 17.20 |
