View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

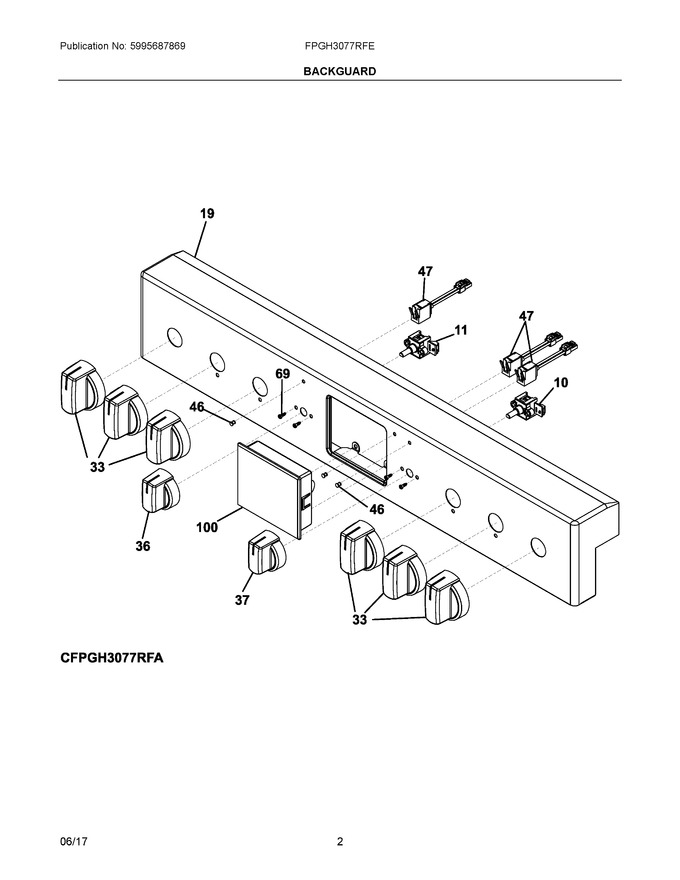

02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 808843105 | Potentiometer, Oven Temp |
|
$ 155.61 | |||||
| 11 | 5304493649 | Potentiometer, Oven Mode |
|
Immediately | $ 71.59 | ||||
| 19 | 809103502 | Panel, Control, Stainless |
|
$ 294.05 | |||||
| 33 | 809137801 | Knob, Top Valve, Stainless |
|
$ 147.88 | |||||
| 36 | 809137901 | Knob, Selector, Oven |
|
$ 122.86 | |||||
| 37 | 809137902 | Knob, Temperature, Oven |
|
$ 138.02 | |||||
| 46 | 316557300 | Lens-light/lamp, Indicator, Clear |
|
Immediately | $ 16.77 | ||||
| 47 | 316022508 | Light/lamp, Indicator, Blue, Oven |
|
$ 27.30 | |||||
| 69 | 5303288565 | Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg |
|
$ 3.12 | |||||
| 100 | 808751519 | Control Assembly, Complete, Hmi |
|
Immediately | $ 273.08 | ||||
| NI | 5304517680 | Harness, Wiring, Backguard Cntl (Replaces: 5304502431) |
|
$ 46.41 | |||||
| NI | 5304510183 | Harness, Wiring, Communication, Pcbs |
|
$ 95.56 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NIA | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 |
