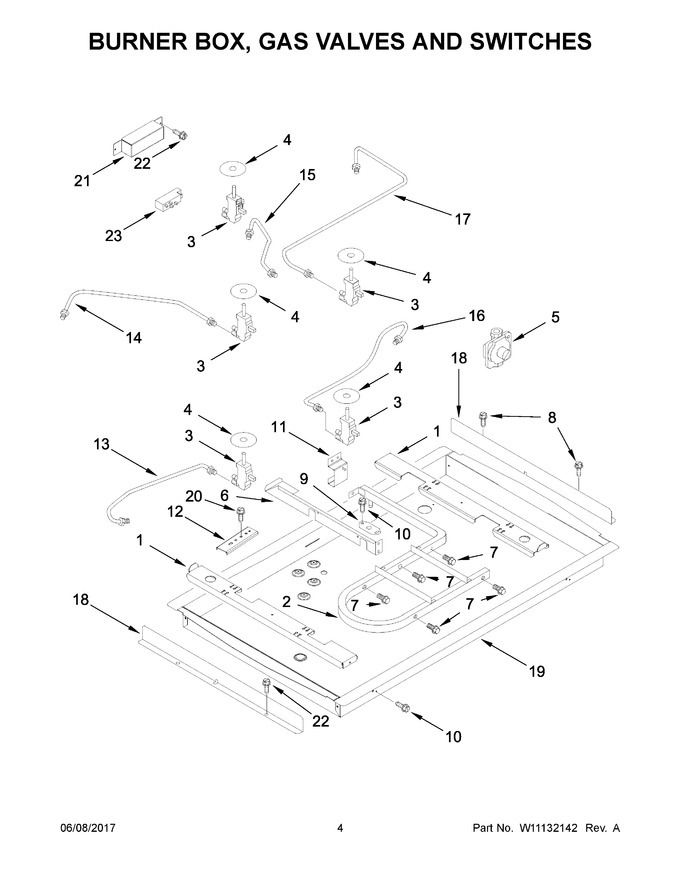

03 - Burner Box, Gas Valves And Switches


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8285796		Rail, Burner		Appelez-nous	-
2	8285751		Pipe, Manifold				$ 306.05
3	8286561		Valve, Gas Burner (left Front)				$ 277.50
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	W11170853		Regulator, Pressure   (Replaces: W10449142)				$ 283.08
6	W10203755		Rail, Center		Appelez-nous	-
7	12002277		Screw   (Replaces: 7101P640-60)				$ 272.78
8	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
9	8286858		Plate, Manifold		Appelez-nous	-
10	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
11	8285790		Bracket, Mounting Orifice				$ 73.58
12	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 79.60
13	W11134300		Tube (left Front)   (Replaces: W10721118)		Appelez-nous	-
14	8285769		Tube (left Rear)		Appelez-nous	-
15	8285770		Tube (center)				$ 153.93
16	8285768		Tube (right Front)				$ 167.83
17	8285767		Tube (right Rear)				$ 178.67
18	3191462		Shield, Heat		Appelez-nous	-
19	N/P		Box, Burner (not Serviced)		Appelez-nous	-
20	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
21	8285789		Shield, Heat   (Replaces: W10203754)				$ 154.04
22	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
23	WPW10110486		Module, Spark   (Replaces: W10110489)				$ 285.33
3A	8286559		Valve, Gas Burner (left Rear & Right Front)				$ 123.31
3B	WP4456817		Valve, Gas Burner (center Rear)   (Replaces: 4456817)				$ 286.38
3C	8286560		Valve, Gas Burner (right Rear)				$ 123.39
