01 - Cover Sheet

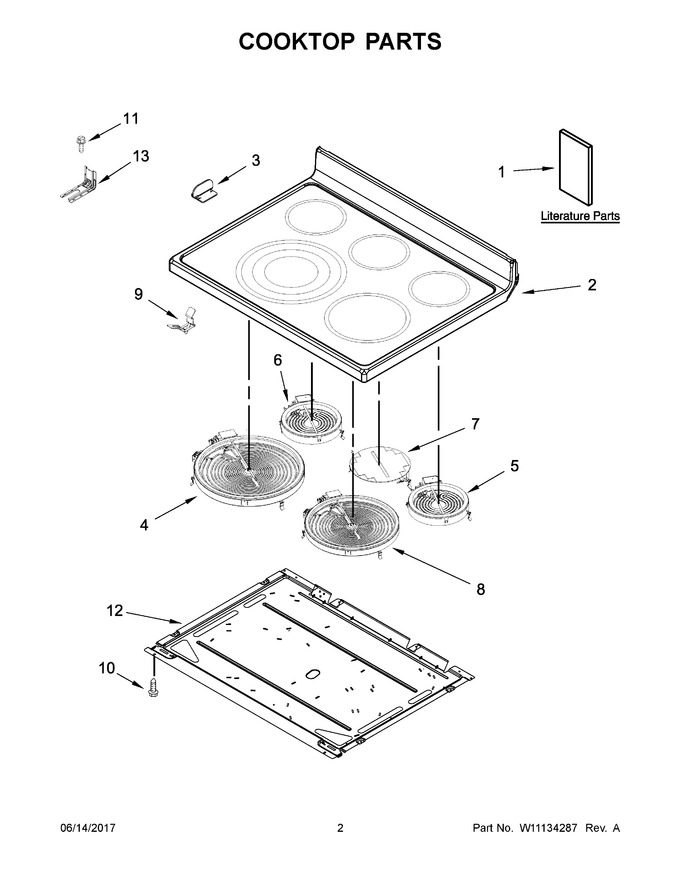

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10841336 | Guide, Use & Care (english) |
|
- | |||||
| 2 | W10872562 | Cooktop (black) (Replaces: W10828424) |
|
Immediately | $ 695.14 | ||||
| 3 | W10607641 | Bracket, Cooktop (left) |
|
$ 28.73 | |||||
| 4 | W10823720 | Element (3000w) (left Front) (Replaces: W10187839) |
|
Immediately | $ 302.91 | ||||
| 5 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 6 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 7 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 113.96 | |||||
| 8 | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 121.00 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 11 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 12 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 122.99 | ||||
| 13 | W11447673 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.64 | ||||
| 1A | W10843071 | Sheet, Tech (english) |
|
- | |||||
| 1B | W10403811 | Instructions, Installation |
|
- | |||||
| 1C | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2A | W10872564 | Cooktop (white) (Replaces: W10828425) |
|
Immediately | $ 593.89 | ||||
| 3A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11501964 | Harness, Main (Replaces: W10829579) |
|
- | |||||
| NI | W10829580 | Harness, Cooktop (left) |
|
- | |||||
| NI | W11134550 | Harness, Cooktop (right) (Replaces: W10744210) |
|
$ 196.20 | |||||
| NI | W11134592 | Harness, Warm Zone (Replaces: W10174460) |
|
$ 100.51 | |||||
| NI | W11212183 | Harness, Sensor (Replaces: W10349640) |
|
$ 201.98 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
