SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body

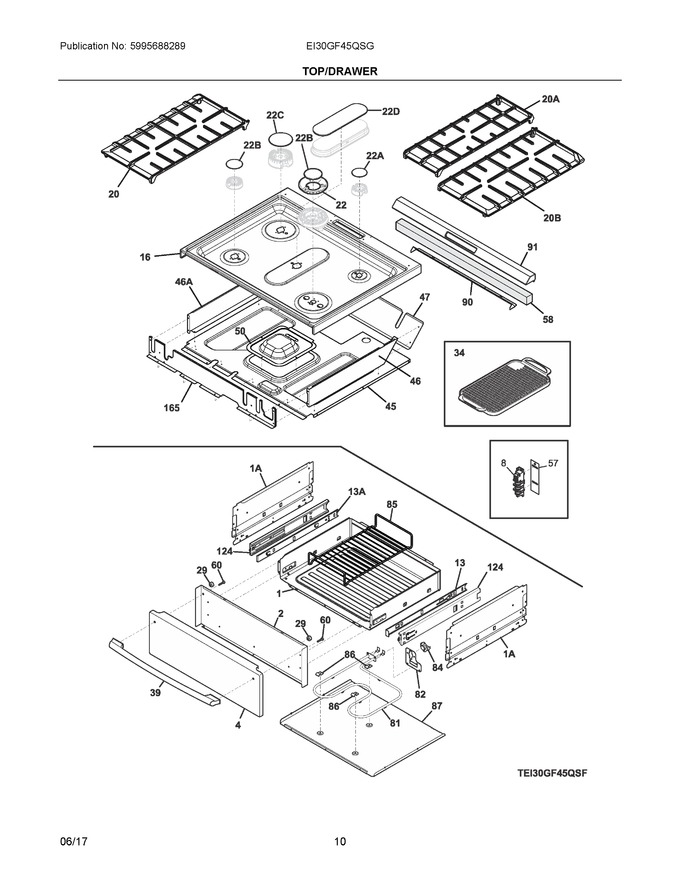

05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509910		Drawer, Body Assembly		Appelez-nous	-
2	318303907		Panel, Drawer, Black, Inner				$ 124.90
4	318298828		Panel, Drawer, Stainless, Front				$ 194.25
8	808608804		Spark Module			Immediately	$ 76.06
13	318259513		Glide, Warmer, Inner Rh				$ 29.58
16	809020401		Main Top, Stainless				$ 484.79
20	5304501428		Grate, Burner, Lh Side				$ 224.81
22	5304519953		Cap, Burner, Black, G5   (Replaces: 139029203)				$ 165.17
29	318147430		Bumper, (2)				$ 18.95
34	5304495353		Griddle			Immediately	$ 166.84
39	316380802		Handle, Door, Stainless				$ 250.86
45	809175901		Panel, Burner Box, Bottom		Appelez-nous	-
46	809123602		Panel, Upper Side, Rh		Appelez-nous	-
47	809123801		Panel, Burner Box, Rear		Appelez-nous	-
50	318578803		Panel, Service, Fan				$ 43.73
57	318295611		Panel, Service				$ 15.12
58	5304497296		Insulation, Vent Cover		Appelez-nous	-
60	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
81	318255301		Element, Warmer Drawer				$ 105.42
82	318304500		Bracket, Element, Warmer Drawer				$ 11.29
84	318005108		Thermostat			Immediately	$ 81.14
85	807328301		Rack, Warmer Drawer				$ 87.21
86	316095800		Clip, Hold Down, (3)				$ 9.93
87	318300102		Panel, Warmer Drawer, Lower				$ 106.22
90	809123702		Deflector, Top, Black		Appelez-nous	-
91	809123101		Trim, Vent, Stainless, Rear				$ 257.19
124	316105501		Glide, Outer/rh & Lh, (2)				$ 90.72
165	809123901		Panel, Burner Box, Front		Appelez-nous	-
13A	318259512		Glide, Warmer, Inner Lh				$ 29.58
1A	318300003		Panel, Warmer Drawer, Side, (2)				$ 56.13
20A	5304499692		Grate, Burner, Center				$ 166.55
20B	5304501429		Grate, Burner, Rh Side				$ 221.97
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
22C	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 46.01
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 72.30
46A	809123601		Panel, Upper Side, Lh		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304497168		Harness, Wiring, Warmer Drawer		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	318591200		Washer, Handle, Drawer		Appelez-nous	-
NIA	5304505563		Wire, Ground, Spark Module, W/connector			Immediately	$ 16.23

    View Diagram in Separate Window       Print Part List
