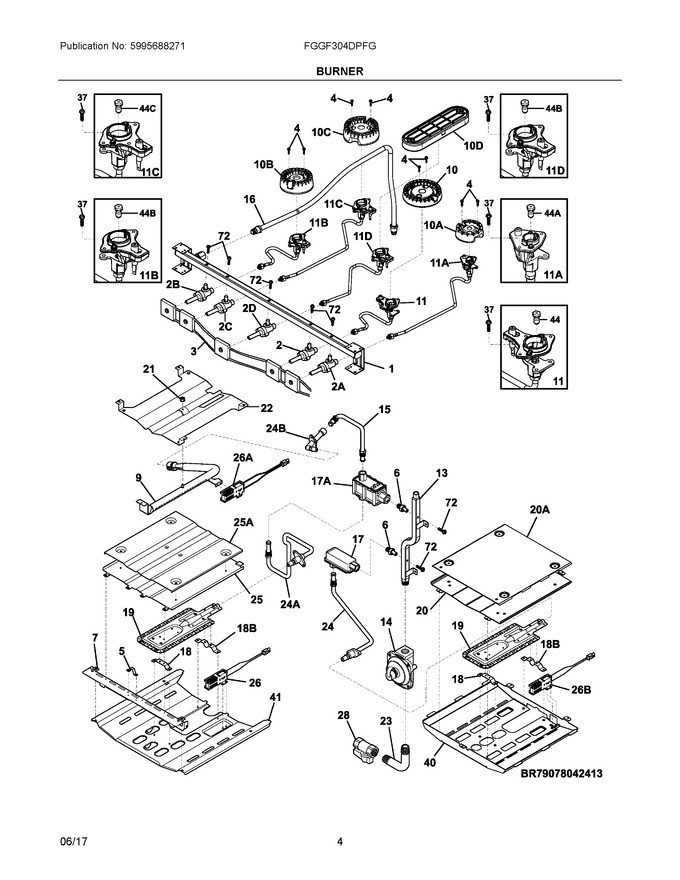

03 - Burner


04 - Body


05 - Main Top


06 - Doors


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316605502		Manifold, Pipe		Appelez-nous	-
2	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 53.85
3	5304507133		Harness Assembly, Ignitor, W/switches		Appelez-nous	-
4	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
5	318407202		Bracket, Support, Oven Bottom		Appelez-nous	-
6	316281700		Fitting, Adaptor, (2)				$ 81.50
7	318571500		Shield, Burner, Front		Appelez-nous	-
9	316261500		Burner, Broil, Upper Oven		Appelez-nous	-
10	316438400		Burner, Sealed, 18.2k			Immediately	$ 83.42
11	316536622		Ignitor/orifice Assy., Top Burner, Right Front, 17k, W/tube & Holder				$ 178.08
13	316259900		Tube, Regulator, To Mainfold		Appelez-nous	-
14	316470716		Regulator, Pressure				$ 117.55
15	316281200		Tube, Broiler Supply		Appelez-nous	-
16	807249802		Tube, Supply		Appelez-nous	-
17	316259600		Valve, Safety, Lower Oven				$ 197.17
18	318577100		Bracket, Bake Burner, Front, (2)		Appelez-nous	-
19	357710306		Burner, Bake, (2)				$ 542.99
20	139073603		Baffle, Bake Burner		Appelez-nous	-
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	318579701		Baffle, Broil Burner		Appelez-nous	-
23	316281600		Pipe, Inlet		Appelez-nous	-
24	139071600		Mixer, Bake, Lower		Appelez-nous	-
25	318937503		Baffle, Bake Burner, Upper Oven		Appelez-nous	-
26	316489406		Ignitor, Bake Burner, (2)				$ 167.27
28	318087450		Valve, Shut Off		Appelez-nous	-
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 12.13
40	139073001		Box, Bake Burner, Lower		Appelez-nous	-
41	318572201		Box, Bake Burner, Upper Oven		Appelez-nous	-
44	316527509		Orifice, Burner, 17k				$ 19.85
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10C	316438600		Burner, Sealed, 14k			Immediately	$ 79.80
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 177.19
11A	316536610		Ignitor/orifice Assy., Top Burner, Right Rear, 5k, W/holder, Tube			Immediately	$ 92.38
11B	316536602		Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube				$ 132.62
11C	316536616		Ignitor/orifice Assy., Top Burner, Left Rear, 14k, W/holder, Tube			Immediately	$ 156.21
11D	316536623		Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder & Tube				$ 147.71
17A	316256700		Valve, Safety, Upper Oven				$ 518.72
18B	318577102		Bracket, Bake Burner, Rear, Upper Oven		Appelez-nous	-
20A	139073701		Deflector, Burner, Lower		Appelez-nous	-
24A	316281300		Mixer Elbow, Bake, Upper Oven		Appelez-nous	-
24B	316409706		Mixer Elbow, Broil, Upper Oven		Appelez-nous	-
25A	318580101		Deflector, Bake Burner, Upper Oven		Appelez-nous	-
26A	316489405		Ignitor, Broil Burner				$ 178.97
26B	5304534663		Ignitor, Oven Burner   (Replaces: 316489400)			Immediately	$ 107.87
2A	5304506547		Valve, Top Burner, Black Stem, 500btu				$ 69.01
2B	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
2C	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
2D	5304506551		Valve, Top Burner, Pink Stem, 2500btu				$ 61.43
44A	316527504		Orifice, Burner, 5k				$ 22.68
44B	316527500		Orifice, Burner, 9.5k				$ 21.40
44C	316527511		Orifice, Burner, 14k				$ 19.85
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	318586400		Support, Safety Valve, Upper		Appelez-nous	-
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	318586401		Support, Safety Valve, Lower		Appelez-nous	-
NI	GRLP4		Conversion Kit, Lp   (Replaces: 318565451)			Immediately	$ 56.70
NI	318199790		Wiring Harness, Ignitor				$ 107.02
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
