Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10145766 Kickplate Special Order $ 95.92

2 W10115869 Shaft, Long In-Stock Immediately $ 93.74

3 W10115793 Shaft, Short Special Order $ 65.00

4 489504 E-ring Special Order $ 6.35

5 WP3400968 Nut   (Replaces: 3400968) In-Stock Immediately $ 7.01

6 W10145379 Duct, Bottom Appelez-nous -
7 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

8 W10145694 Tube, Valve Special Order $ 78.86

9 W10249333 Base, Leveling Leg Special Order $ 250.47

10 W10859931 Leveler   (Replaces: 9760860) Special Order $ 101.59

11 WP4449743 Screw   (Replaces: 4449743) Special Order $ 6.47

12 W10145376 Support, Channel Appelez-nous -
13 WPW10138054 Assembly, Roller   (Replaces: W10138054) Special Order $ 38.86

14 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

15 WPW10250465 Panel, Side (left)   (Replaces: W10250465) Special Order $ 343.68

16 W11239228 Valve, Dual   (Replaces: W10145680) In-Stock Immediately $ 288.82

17 W10269206 Chassis, Side (left) Special Order $ 201.67

15A W11333303 Panel, Side (right)   (Replaces: W10250464) Special Order $ 361.21

17A W10269205 Chassis, Side (right) Special Order $ 201.88


    View Diagram in Separate Window     Print Icon   Print Part List

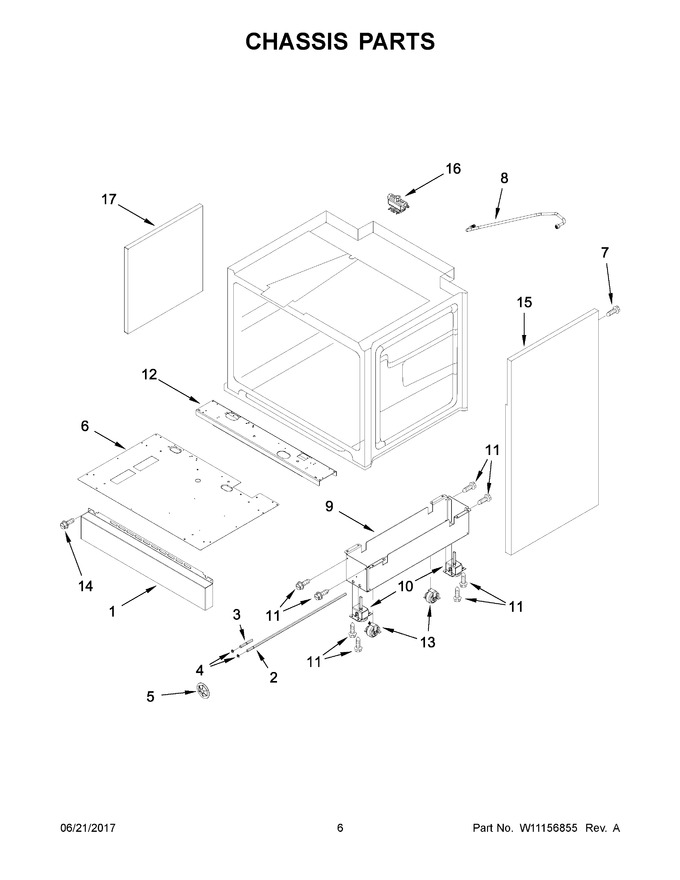

Diagram for JGRP536WP02
