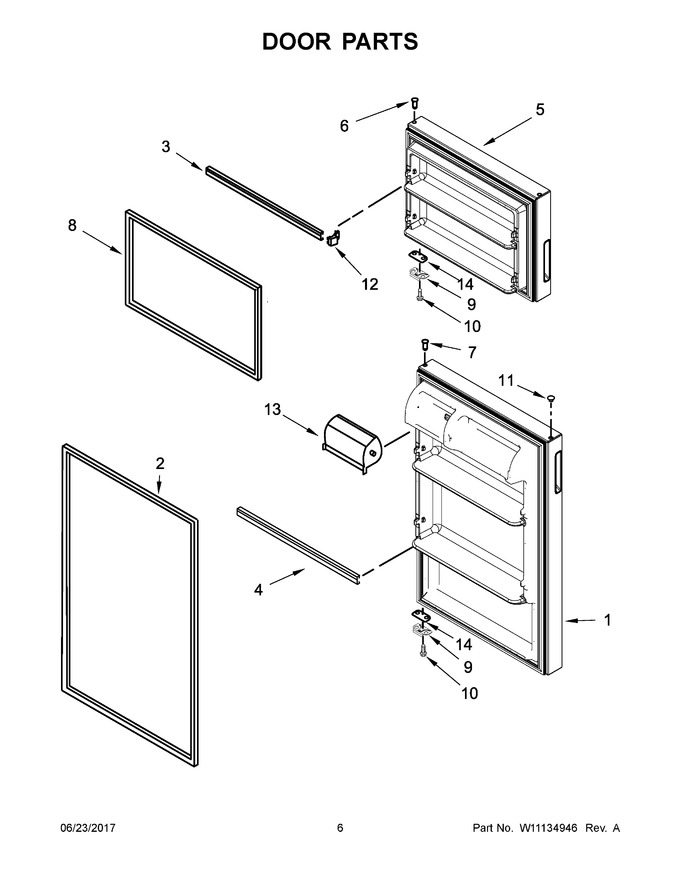

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11258255 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W11089356) |
|
$ 327.65 | |||||
| 2 | WP2319265T | Door Gasket, Magnetic (white) (Replaces: 2264728) |
|
Immediately | $ 166.40 | ||||
| 3 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 4 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 109.15 | ||||
| 5 | W11258261 | Freezer Door (includes Illustration 12) (white) (Replaces: W11089357) |
|
- | |||||
| 6 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 7.18 | |||||
| 7 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 6.98 | |||||
| 8 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 135.93 | ||||
| 9 | W10492012 | Bracket, Door Stop |
|
$ 14.45 | |||||
| 10 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 11 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.02 | ||||
| 12 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 13 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 52.88 | ||||
| 14 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 |
