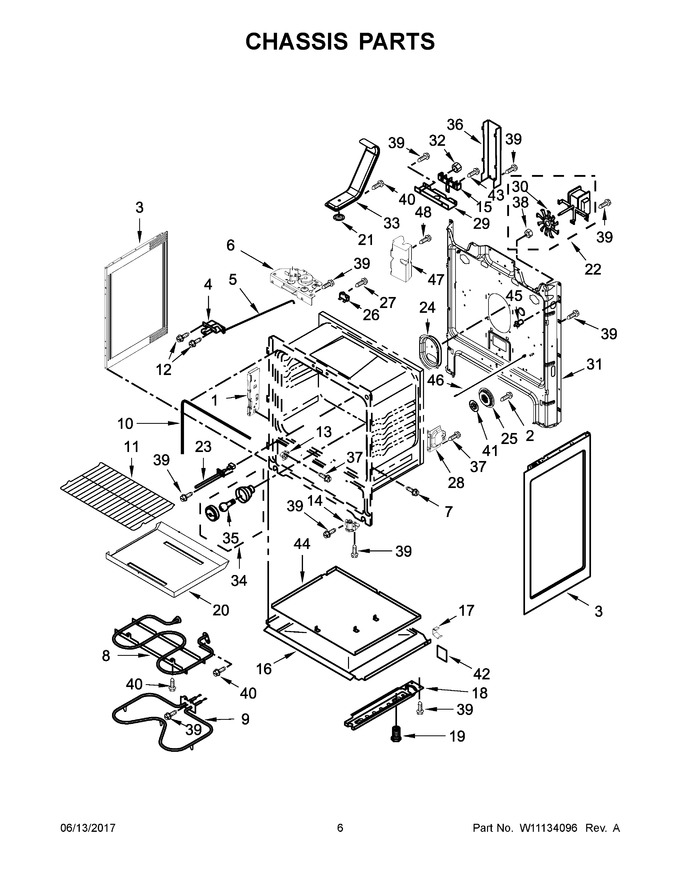

04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 8.39
2	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
3	WPW10575396		Panel, Side (white)   (Replaces: W10575396)				$ 133.84
4	WP9761013		Assembly, Door Latch (front)   (Replaces: 9761013)				$ 219.74
5	W10078380		Rod, Latch				$ 81.35
6	WPW10107830		Latch Assembly, Rear   (Replaces: W10107830)				$ 290.98
7	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
8	W10856603		Element, Broil   (Replaces: 9757340)			Immediately	$ 139.16
9	WP9755770		Element, Bake   (Replaces: 9755770)			Immediately	$ 105.89
10	W11542153		Seal, Door   (Replaces: W10658354)			Immediately	$ 45.18
11	W11520287		Rack, Oven   (Replaces: W10268578)			Immediately	$ 42.16
12	W11169708		Screw   (Replaces: 3196560)				$ 13.36
13	W10807823		Glide, Drawer Front   (Replaces: W10674705)			Immediately	$ 16.54
14	WPW10341186		Assembly, Front Foot   (Replaces: W10341186)			Immediately	$ 29.33
15	WPW10245259		Block, Terminal   (Replaces: W10245259)			Immediately	$ 31.65
16	W10134121		Tray, Insulation				$ 38.36
17	W10137382		Clip, Panel			Immediately	$ 41.50
18	W11818353		Assembly, Base Rail (left)   (Replaces: W10390008)				$ 53.71
19	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.07
20	W10183712		Tray, Hidden Bake				$ 209.10
21	9761301		Screen, Vent				$ 126.77
22	W11582241		Fan, Convection   (Replaces: W10167917)			Immediately	$ 115.48
23	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
24	W10134126		Bracket, Fan				$ 20.56
25	WPW10134124		Cover, Conv Fan   (Replaces: W10134124)			Immediately	$ 87.93
26	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 42.94
27	3196172		Screw			Immediately	$ 11.55
28	W10404688		Clip, Oven Support				$ 15.17
29	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
30	W10758272		Blade, Fan   (Replaces: W10116351)			Immediately	$ 7.12
31	W10273169		Back, Main		Appelez-nous	-
32	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.47
33	WPW10134285		Tube, Vent   (Replaces: W10134285)			Immediately	$ 225.43
34	W11594027		Assembly, Light   (Replaces: W10454648)			Immediately	$ 78.31
35	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
36	WPW10326122		Cover, Terminal Block   (Replaces: W10326122)				$ 119.66
37	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
38	W11548755		Nut   (Replaces: W10213748)				$ 13.02
39	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
40	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 7.04
41	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.01
42	W10646923		Card, Insulator				$ 16.78
43	WP3400016		Screw   (Replaces: 3400016)				$ 7.16
44	W10134125		Shield, Heat				$ 136.60
45	W10627797		Switch, Door		Appelez-nous	-
46	9757239		Rod, Door Switch				$ 82.60
47	W11135752		Counterweight   (Replaces: W10910404)			Immediately	$ 131.81
48	W11135756		Screw   (Replaces: W11034869)				$ 12.63
18A	W11818353		Assembly, Base Rail (right)   (Replaces: W10390007)				$ 53.71
3A	W11730303		Panel, Side (black)   (Replaces: W10162245)			Immediately	$ 148.35
NI	W11684918		Insulation, Flue   (Replaces: W10333344)			Immediately	$ 30.41
NI	W11161831		Insulation, Wrap   (Replaces: W10774939)			Immediately	$ 99.78
NI	W10326347		Insulation, Back		Appelez-nous	-
