01 - Main Top
02 - Power Lock
03 - Burner
04 - Lower Body
05 - Lower Oven Door
06 - Upper Oven Burner
07 - Upper Body
08 - Oven Control Panel
09 - Lit/optional Equipment
SELECT A DIAGRAM
New Model Search:

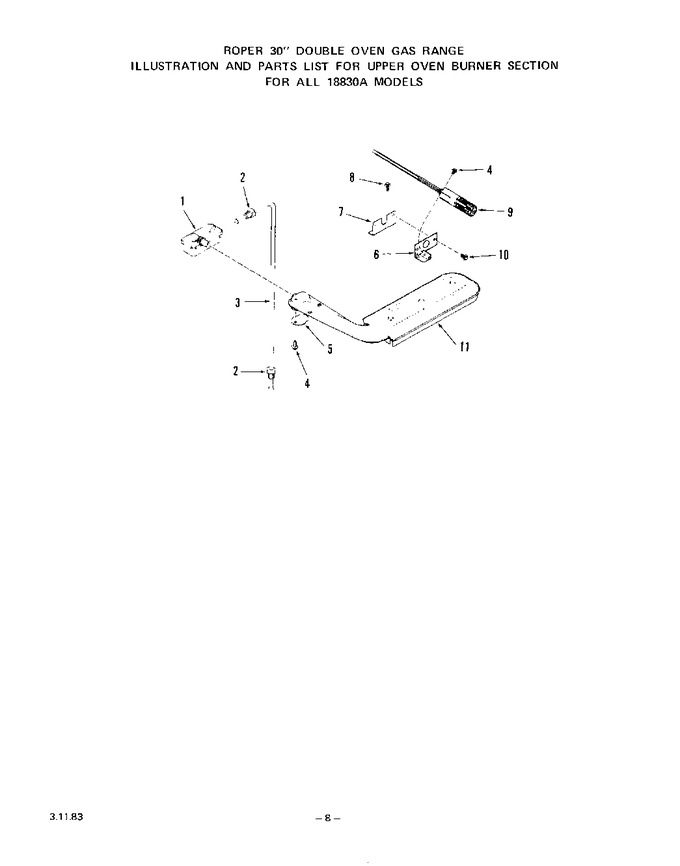

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 306251 | Control Valve |
|
- | |||||
| 2 | 113384 | Inverted Nut 3/8`` |
|
- | |||||
| 3 | 295035 | Tubing 3/8`` (tee To Upper Control Valve) |
|
- | |||||
| 4 | 105771 | Screw 10 - 32 X 1/4`` |
|
- | |||||
| 5 | 323455 | Air Shutter |
|
- | |||||
| 6 | 311689 | Bracket-igniter |
|
- | |||||
| 7 | 302535 | Bracket-igniter |
|
- | |||||
| 8 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 9 | WG02F04373 | Igniter (Replaces: 319887) |
|
Immediately | $ 109.23 | ||||
| 10 | 69605 | Screw 10abx3/8`` |
|
- | |||||
| 11 | 311323 | Oven Burner Complete |
|
- |
