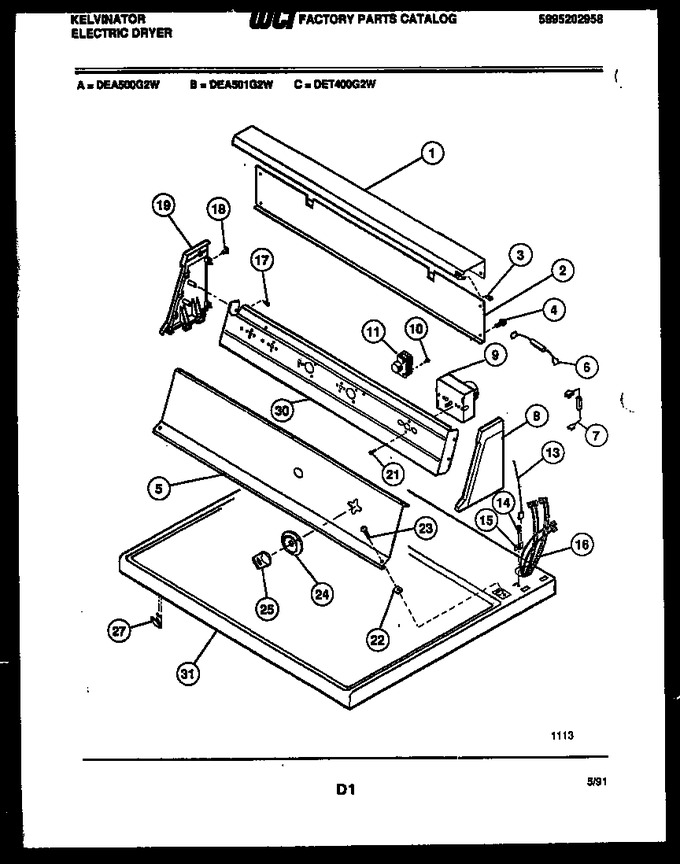

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3201609		Top Cover		Appelez-nous	-
2	3201349		Backsheet		Appelez-nous	-
3	5308010825		Clip (3)		Appelez-nous	-
4	5303015671		Screw (5)		Appelez-nous	-
5	3206003		Trimplate		Appelez-nous	-
6	5303281110		Resistor		Appelez-nous	-
7	3205877		Resistor				$ 51.14
8	3206005		End Trim & Cap Assembly Rh		Appelez-nous	-
9	3201382		Timer		Appelez-nous	-
10	08010804		Screw (2)		Appelez-nous	-
11	5303207383		Push To Start Switch		Appelez-nous	-
13	3201385		Ground Wire		Appelez-nous	-
14	08001689		Screw		Appelez-nous	-
15	5379171000		Terminal		Appelez-nous	-
16	5303270869		Harness		Appelez-nous	-
17	5303161244		Screw (4)		Appelez-nous	-
18	5303210923		Clip (4)		Appelez-nous	-
19	3206007		End Trim & Cap Assembly - Lh		Appelez-nous	-
21	3161188		Screw (2)		Appelez-nous	-
22	5300503065		Clip (2)				$ 6.09
23	3205820		Screw (2)		Appelez-nous	-
24	5308015702		Pointer		Appelez-nous	-
25	5303206987		Timer Knob				$ 52.66
27	3205821		Spring-clip (2)			Immediately	$ 35.44
30	3205822		Control Mounting Bracket		Appelez-nous	-
31	5303273261		Top Panel White		Appelez-nous	-
13A	5303212827		Ground Clip (non-illustrated)		Appelez-nous	-
16A	5303281103		Wire Tie (3) (non-illustrated)		Appelez-nous	-
16B	3281102		Clip (3) (non-illustrated)		Appelez-nous	-
