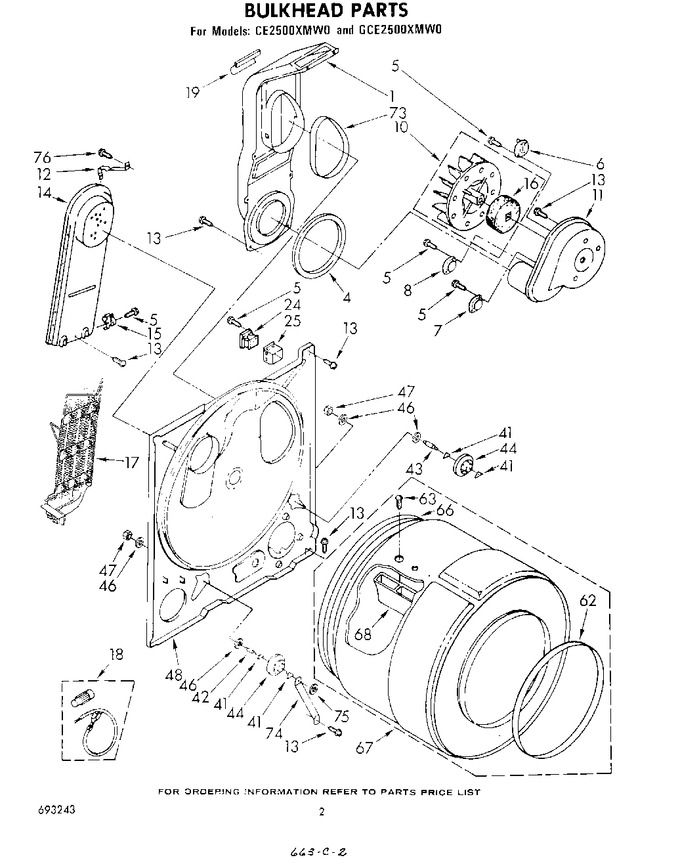

SELECT A DIAGRAM

02 - Bulkhead, Literature And Optional


03 - Top And Console


04 - Cabinet


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	279505		Lint Chute, Assembly   (Replaces: 694283)				$ 272.35
4	W11415783		Seal   (Replaces: 347139)			Immediately	$ 16.41
5	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
6	WP3390719		Thermal Fuse   (Replaces: 660877)			Immediately	$ 28.41
6	WP3390719		Thermal Fuse (alt.)   (Replaces: 688841)			Immediately	$ 28.41
6	WP3390719		Thermal Fuse (alt.)   (Replaces: 690198)			Immediately	$ 28.41
7	WP694674		Thermostat, Operating 155~f (68~c) (alt.)   (Replaces: 299620)			Immediately	$ 45.46
7	AT022		Thermostat, Operating 155~f (68~c)   (Replaces: 660073)			Immediately	$ 31.65
7	LS2-155		Thermostat, Operating 155~f (68~c) (alt.)   (Replaces: 341199)			Immediately	$ 24.60
8	WP694674		Thermostat, Operating (140~f) (60~c)   (Replaces: 660040)			Immediately	$ 45.46
8	LS2-140		Thermostat, Operating 140~f (60~c) (alt.)   (Replaces: 342813)			Immediately	$ 24.60
8	LS2-140		Thermostat, Operating 140~f (60~c) (alt.)   (Replaces: 342812)			Immediately	$ 24.60
10	WP694089		Wheel, Blower   (Replaces: 695499)			Immediately	$ 33.89
11	348494		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 337272)				$ 12.90
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
14	685457		Box, Heater		Appelez-nous	-
15	341195		Thermostat, High Limit 250~f (121\.\1~c)		Appelez-nous	-
16	694630		Seal, Blower		Appelez-nous	-
17	WP279462		Heater Element   (Replaces: 693301)				$ 261.32
18	279457		Terminal Wire Kit (for Heater Element Wiring Harness Repair)			Immediately	$ 7.13
19	686770		Protector Support		Appelez-nous	-
24	340274		Relay, 60 Hz.		Appelez-nous	-
25	691220		Shield, Relay		Appelez-nous	-
41	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 7.92
42	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 65.44
43	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 42.57
44	349241T		Roller, Support (2)   (Replaces: 349241)			Immediately	$ 26.58
46	WP348197		Washer, Support (4)   (Replaces: 348197)				$ 6.47
47	120377		Nut, 3/8-16 (2)		Appelez-nous	-
48	685769		Bulkhead		Appelez-nous	-
62	WP3394508		Bearing, Ring   (Replaces: 297936)				$ 113.02
63	690372		Screw, 11-16 X 7/8		Appelez-nous	-
66	239087		Seal, Rear Drum   (Replaces: 337449)			Immediately	$ 56.50
67	3396775		Drum Assembly   (Replaces: 337928)				$ 302.60
68	WP342847		Baffle, Drum   (Replaces: 342847)				$ 132.28
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 7.77
74	348945		Bracket, Support Shaft		Appelez-nous	-
75	WP90296		Clip   (Replaces: 90296)				$ 7.07
76	799351		Thinner (1 Gal.)		Appelez-nous	-
76	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
76	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
76	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
76	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
76	687454		Instructions, Installation		Appelez-nous	-
76	348772		Instructions, Multi-venting		Appelez-nous	-
76	692257		Sheet, Top Lock Instruction		Appelez-nous	-
76	693243		List, Service Parts		Appelez-nous	-
76	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
76	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
76	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
76	261888		New Avocado		Appelez-nous	-
76	261890		Golden Harvest		Appelez-nous	-
76	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
76	350941		Leveler (thinner)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	261891		Xgolden Harvest (uncut)		Appelez-nous	-
	261889		Xnew Avocado (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
