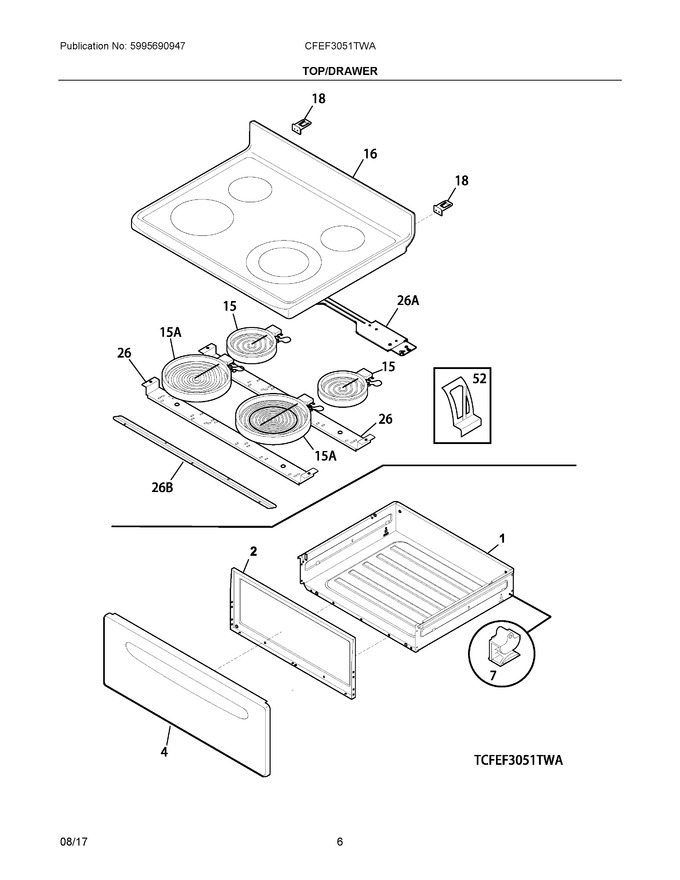

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304511288		Liner, Drawer   (Replaces: 316284800)				$ 57.64
4	316231327		Panel, Drawer, White				$ 109.73
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 9.86
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	5304509148		Main Top Assembly, Glass/steel, White				$ 660.66
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	5304500986		Channel, Element Support, (2)				$ 41.68
52	316461700		Clip, Element Mtg				$ 12.05
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	5304520912		Harness, Surface   (Replaces: 5304510874)				$ 89.31
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
