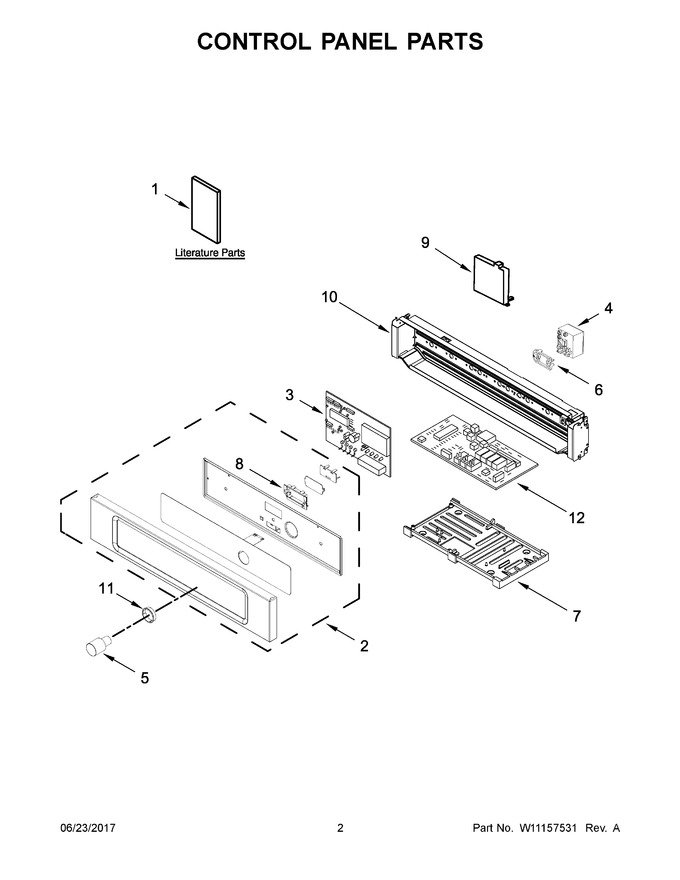

02 - Control Panel Parts
03 - Cabinet Parts
04 - Door Parts
05 - Top Venting Parts
06 - Oven Interior Parts
07 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10909666 | Installation Instructions |
|
- | |||||
| 2 | W11160285 | Assembly, Control Panel (stainless) (Replaces: W11115247) |
|
Immediately | $ 307.69 | ||||
| 3 | W11160286 | Pcba, User Interface (Replaces: W10913244) |
|
Immediately | $ 386.69 | ||||
| 4 | WPW10623991 | Dial, Control (Replaces: W10623991) |
|
$ 228.11 | |||||
| 5 | W10448758 | Knob |
|
- | |||||
| 6 | W10837437 | Spacer, Dial |
|
- | |||||
| 7 | 461967750752 | Holder, Pcb |
|
$ 60.61 | |||||
| 8 | 461967750153 | Holder, Display Board |
|
$ 70.79 | |||||
| 9 | W10884489 | Holder, Control Board (Replaces: 461967750132) |
|
$ 66.02 | |||||
| 10 | W11660273 | Support, Panel (Replaces: 461961099964) |
|
- | |||||
| 11 | 461960204731 | Ring |
|
$ 59.99 | |||||
| 12 | W11196485 | Board, Power (Replaces: W10591453) |
|
Immediately | $ 370.65 | ||||
| 1A | W10909665 | Use And Care Guide |
|
- | |||||
| 1B | W11041532 | Cooking Guide Label (english) |
|
- | |||||
| 1C | W11051706 | Cooking Guide Label (french) |
|
- | |||||
| 1D | W11045675 | Tech Sheet (english & French) |
|
- | |||||
| 1E | W11085080 | Tech Sheet (spanish) |
|
- |
