SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer

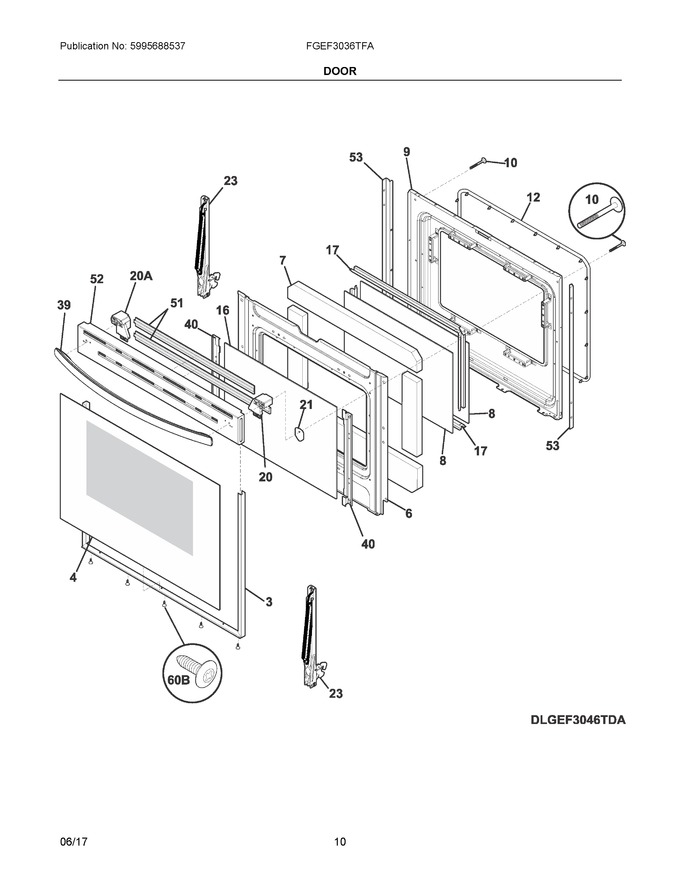

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 58.12
4	316355602		Glass, Door, Black, W/foil   (Replaces: 316355601)				$ 215.62
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation, Oven Door				$ 76.55
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	5304529999		Liner, Oven Door   (Replaces: 316423707)				$ 147.12
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 16.48
12	316405000		Seal, Oven Door			Immediately	$ 179.17
16	316552800		Glass, Door, Airwash				$ 93.87
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316353002		Spacer, Door, Rh		Appelez-nous	-
21	316533801		Plate, Distribution, Load			Immediately	$ 5.67
23	316575908		Hinge, Oven Door, Teal				$ 145.44
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 168.44
40	316552401		Bracket, Airwash Glass, (2)				$ 28.83
51	316355300		Insulation, Door, Top Cap				$ 7.59
52	5304520271		Trim, Door, Stainless, Top Cap   (Replaces: 316350203)				$ 159.06
20A	316353003		Spacer, Door, Lh		Appelez-nous	-
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 13.46
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
