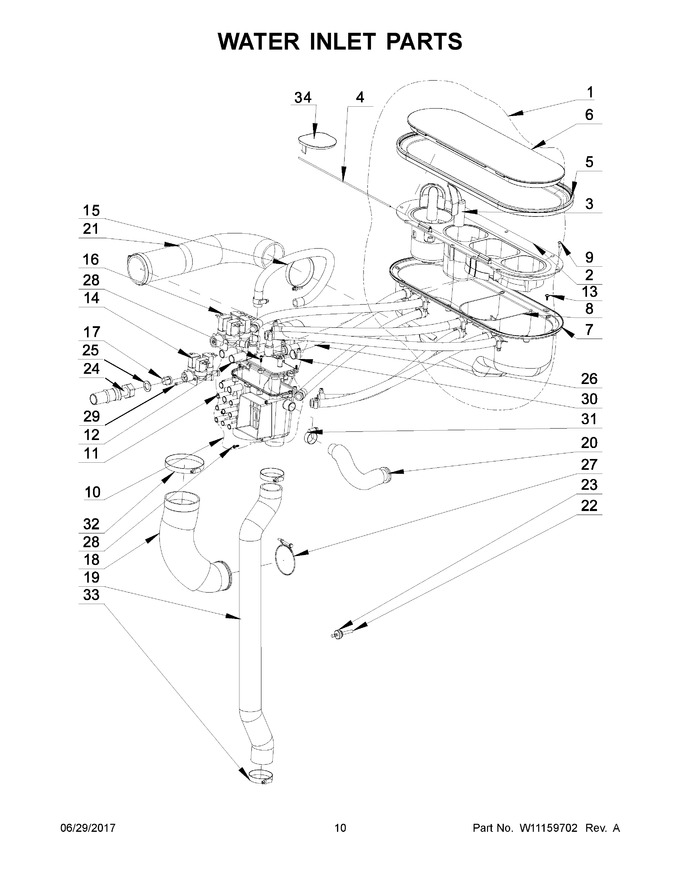

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10714957 | Chemical Dispenser |
|
- | |||||
| 2 | W10712626 | Chemical Dispenser Insert |
|
- | |||||
| 3 | W10712627 | Siphon |
|
- | |||||
| 4 | W10712628 | Pin, Hinge |
|
- | |||||
| 5 | W10712629 | Dispenser Seal |
|
- | |||||
| 6 | W10712630 | Dispenser Lid |
|
- | |||||
| 7 | W10712635 | Chemical Dispenser Base |
|
- | |||||
| 8 | W10712637 | Insert, Chemical Dispenser Base |
|
- | |||||
| 9 | 23003782 | Screw |
|
$ 3.66 | |||||
| 10 | W10712640 | Mixer - Complete |
|
- | |||||
| 11 | W10712642 | Mixer Body |
|
- | |||||
| 12 | W10712644 | Mixer Lid |
|
- | |||||
| 13 | W10711800 | Screw M4x11 |
|
- | |||||
| 14 | W10712646 | Three-way Valve - Complete (3/4") |
|
- | |||||
| 15 | 23001256 | Hose Clamp (60-80) |
|
- | |||||
| 16 | W10712721 | Four-way Valve - Complete (3/4") |
|
- | |||||
| 17 | 23002922 | Filter Screen |
|
- | |||||
| 18 | W10712647 | Filling Hose |
|
- | |||||
| 19 | W10725474 | Overflow Tube |
|
- | |||||
| 20 | W10726649 | Hose, Vent |
|
- | |||||
| 21 | W10725478 | Dispenser Elbow - Pipe |
|
- | |||||
| 22 | 23003964 | Temperature Sensor |
|
- | |||||
| 23 | W10712713 | Seal Ring, Temperature Sensor |
|
- | |||||
| 24 | 23001523 | Hose, Connection |
|
- | |||||
| 25 | 23002921 | Washer, Fill Hose |
|
- | |||||
| 26 | 23001507 | Hose, Inlet |
|
- | |||||
| 27 | W10712716 | Hose Clamp (62-70) |
|
- | |||||
| 28 | W10712718 | Bolt M4x12 |
|
- | |||||
| 29 | 23002398 | Bolt M4x16 |
|
- | |||||
| 30 | WP596669 | Hose Clamp (12-22) (Replaces: 23001506) |
|
Immediately | $ 7.56 | ||||
| 31 | WP616099 | Hose Clamp (20-32) (Replaces: 23001262) |
|
Immediately | $ 7.03 | ||||
| 32 | WP696392 | Hose Clamp (70-90) (Replaces: 23001258) |
|
$ 7.31 | |||||
| 33 | 23001750 | Hose Clamp (40-60) |
|
- | |||||
| 34 | W10734787 | Block-off, Dispenser Cavity |
|
- |
