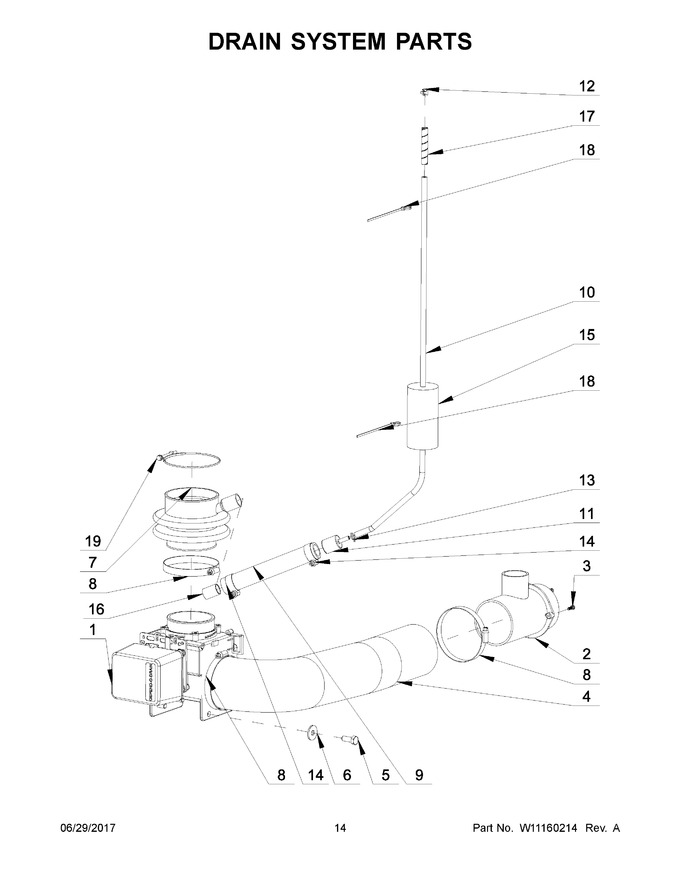

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10712775		Drain Valve - Complete		Appelez-nous	-
2	W10712777		T-connector		Appelez-nous	-
3	W10712718		Bolt M4x12		Appelez-nous	-
4	W10712787		Drain Elbow		Appelez-nous	-
5	23002475		Bolt M8x20				$ 13.66
6	23002437		Washer M8		Appelez-nous	-
7	W10712797		Hose		Appelez-nous	-
8	WP696392		Hose Clamp (70-90)   (Replaces: 23001258)				$ 7.31
9	23001246		Lower Hose, Pressure Switch		Appelez-nous	-
10	23001252		Upper Hose, Pressure Switch		Appelez-nous	-
11	23001260		Pressure Switch Hose Fitting		Appelez-nous	-
12	W10712806		Spring Clamp		Appelez-nous	-
13	WP596669		Clamp, Corbin (a5.5)   (Replaces: 23001257)			Immediately	$ 7.56
14	WP616099		Hose Clamp (20-32)   (Replaces: 23001262)			Immediately	$ 7.03
15	23004491		Larger Bumper		Appelez-nous	-
16	W10712804		Hose Insert		Appelez-nous	-
17	W10712803		Hose Protector		Appelez-nous	-
18	W10657139		Wire Tie (130 X 2.6mm)		Appelez-nous	-
19	WP696392		Hose Clamp (82-90)   (Replaces: W10712805)				$ 7.31
1A	W10712776		Drain Valve (chamber)		Appelez-nous	-
1B	W10357127		Drain Valve (motor Only)				$ 345.51
